DATASHEET

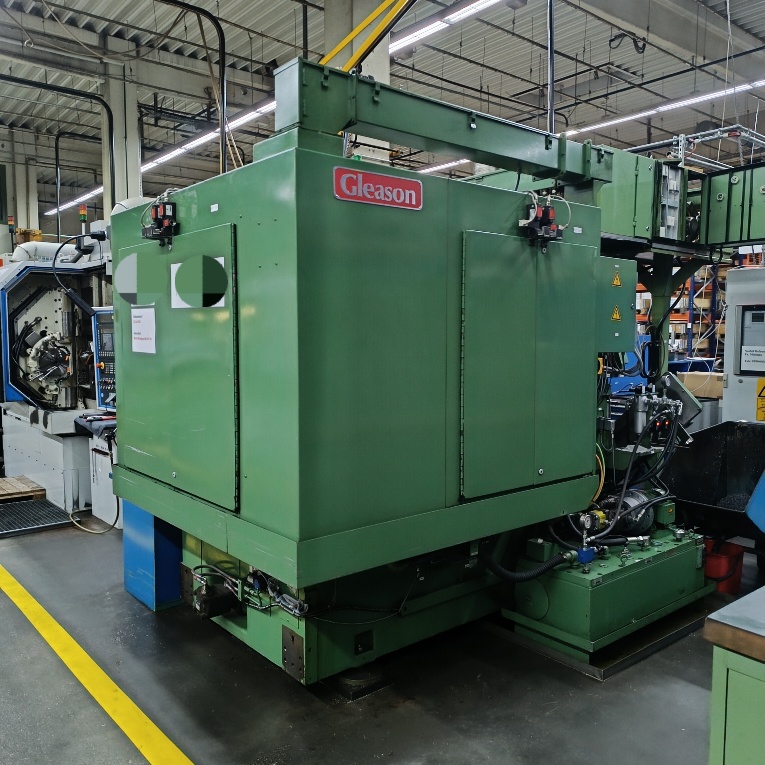

MACHINE DETAILS

Stock No.
1022-H09064
Machinetype
Bevel Gear Generator - Spiral
Make
GLEASON / WELTER
Type
WF 631
Year of construction
2011
Control
CNC
Location
Germany
Country of origin
Germany
Delivery time
Short-dated
Quotation
Ex Works
Price

TECHNICAL DETAILS



max. wheel diameter
mm
gear width
mm
max. module
min. module
Control
Siemens 840 D

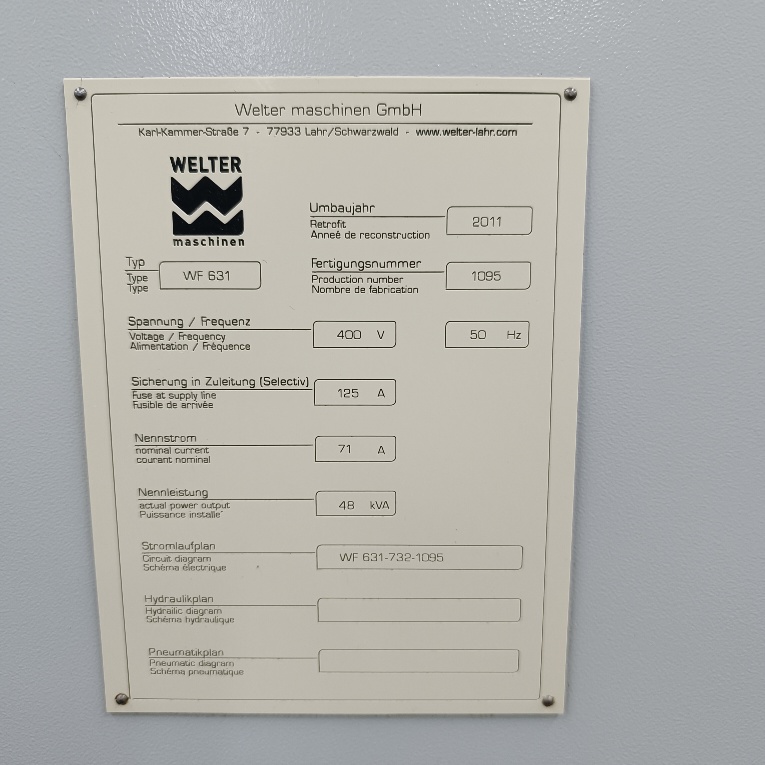

total power requirement
48 kVA
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPTION

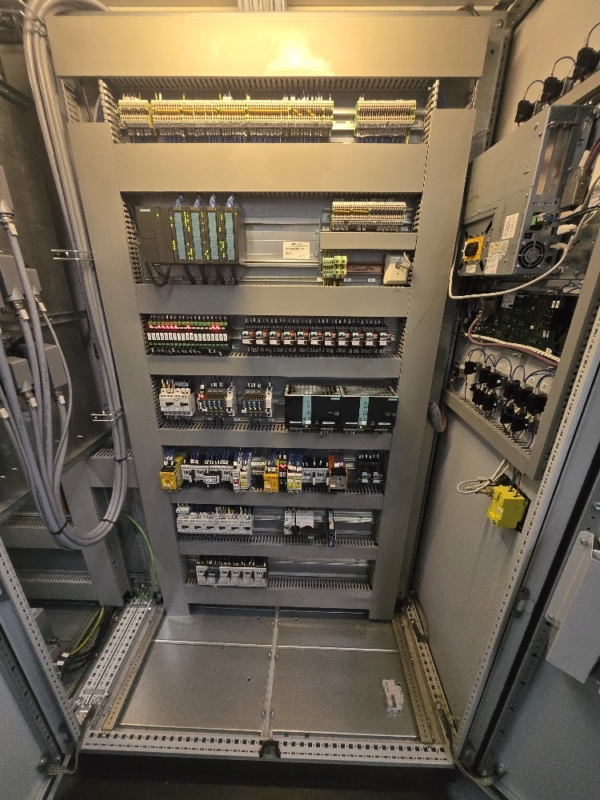

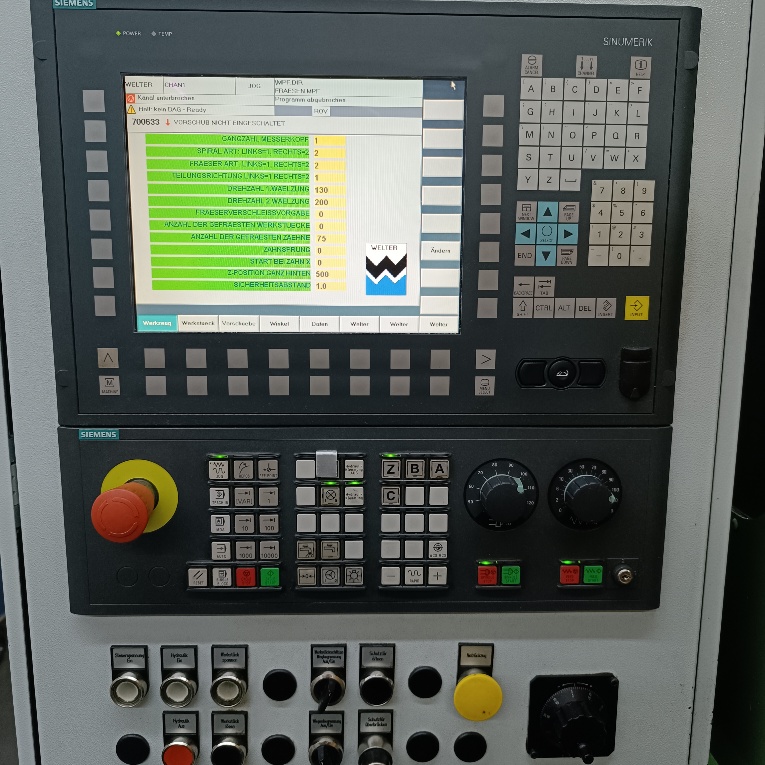

Siemens 840D Powerline CNC Control

Working range:
Maximum tooth ratio 10:1
Base angle range 8 to 90°
Maximum ring gear diameter 406.40 mm

Maximum pitch circle diameter of the ring gear at 35° helix angle
and largest cutter diameter (12 inches) with the following tooth ratios:

1:1 = 342.90 mm

2:1 = 406.40 mm

5:1 = 406.40 mm

Maximum radial setting 177.40 mm
Maximum tooth height (full depth) 25.40 mm
Maximum tooth width 66 mm
Tooth count range 5 to 100
Up to 120 possible, possibly with special change gears upon request.


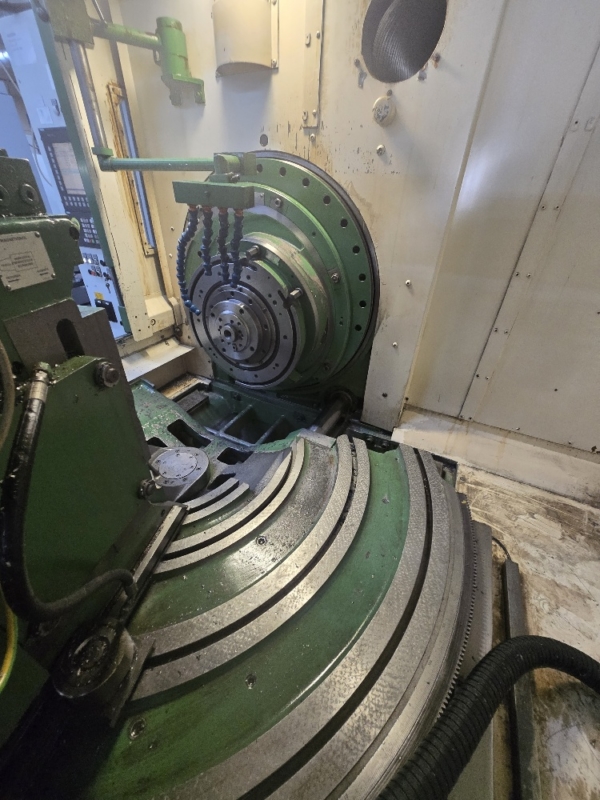

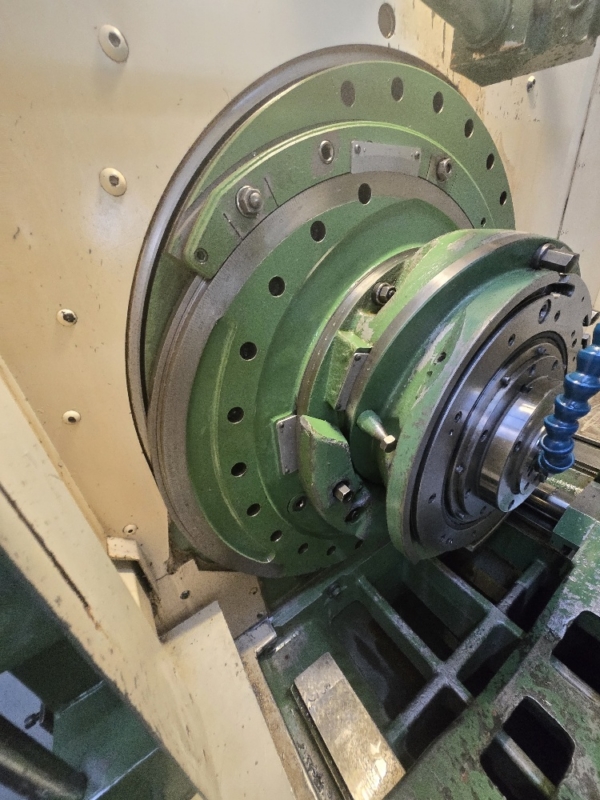

Workpiece Spindle
Diameter of the tapered bore at the wide end: 99.22 mm
Tap per 100 mm: 5.08 mm
Tap depth: 152.40 mm
Diameter of the entire spindle bore: 77.79 mm

Possible milling head diameters:
100, 125, 160, 200, 250, and 320 mm

Workpiece Spindle Settings:
Maximum offset above or below center: 57.15 mm
Maximum distance from machine center to spindle nose: 368.30 mm

Maximum milling head speed: 2000 rpm

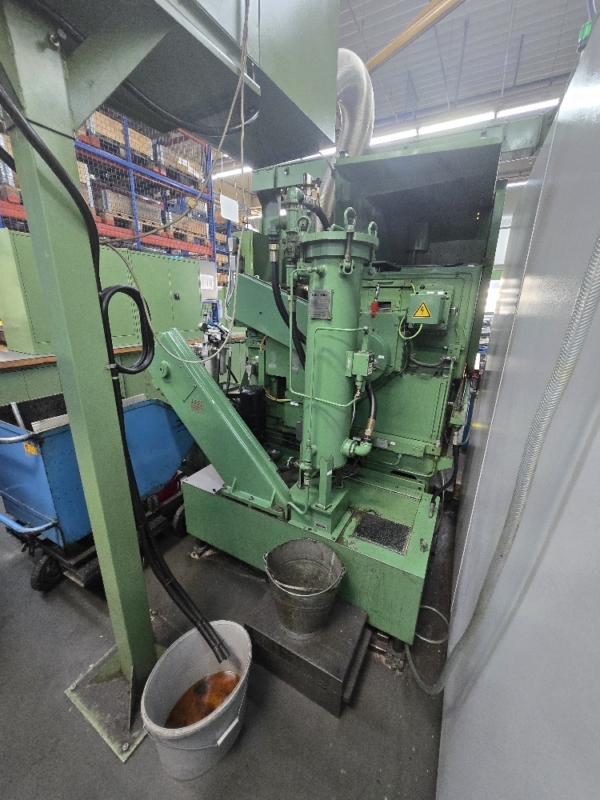

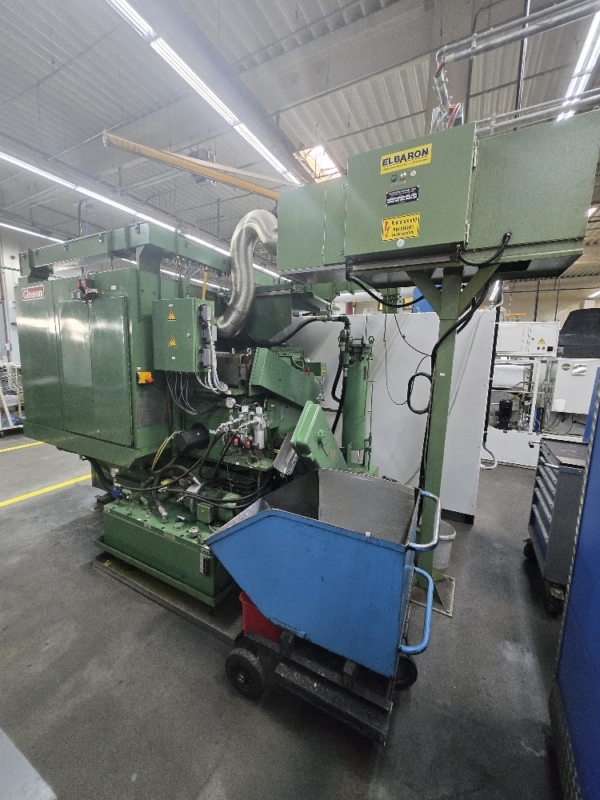

Dimensions and Weight:
Space required including hydraulic unit, control cabinet, and chip conveyor: 2670 x 4280 mm
Height: 2540 mm




Changes and errors in the technical details and information reserved.

Documents & videos

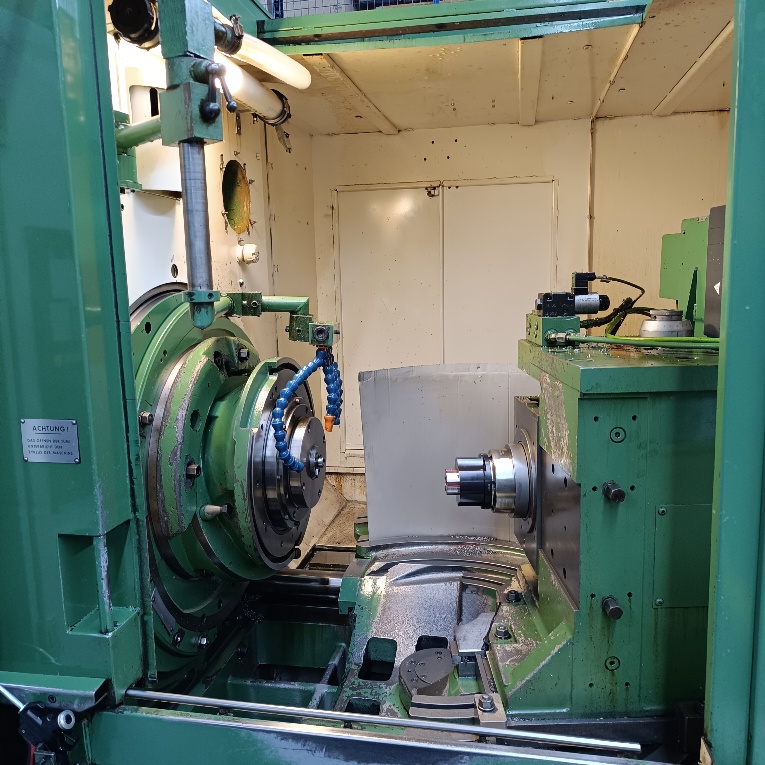

#1022-H09064 - Bevel Gear Generator - Spiral GLEASON / WELTER WF 631
