DATASHEET

MACHINE DETAILS

Stock No.
1022-H09001
Machinetype
Planer-Type Milling M/C - Double Column
Make
WALDRICH-COBURG
Type
Valutec
Year of construction
2002
Control
CNC
Location
Germany
Country of origin
Germany
Delivery time
Immediately
Quotation
ex foundation
Price

TECHNICAL DETAILS



x-travel
6000 mm
y-travel
3500 mm
z-travel
1500 mm
total power requirement
kW
weight of the machine ca.
161 t
dimensions of the machine ca.
m


DESCRIPTION

x-travel 6000 mm
y-travel 3500 mm
z-travel 1500 mm
CNC control 840 D
Table load 12 t
Table dimensions - lengthways 5000 mm
Table dimensions - crossways 2500 mm

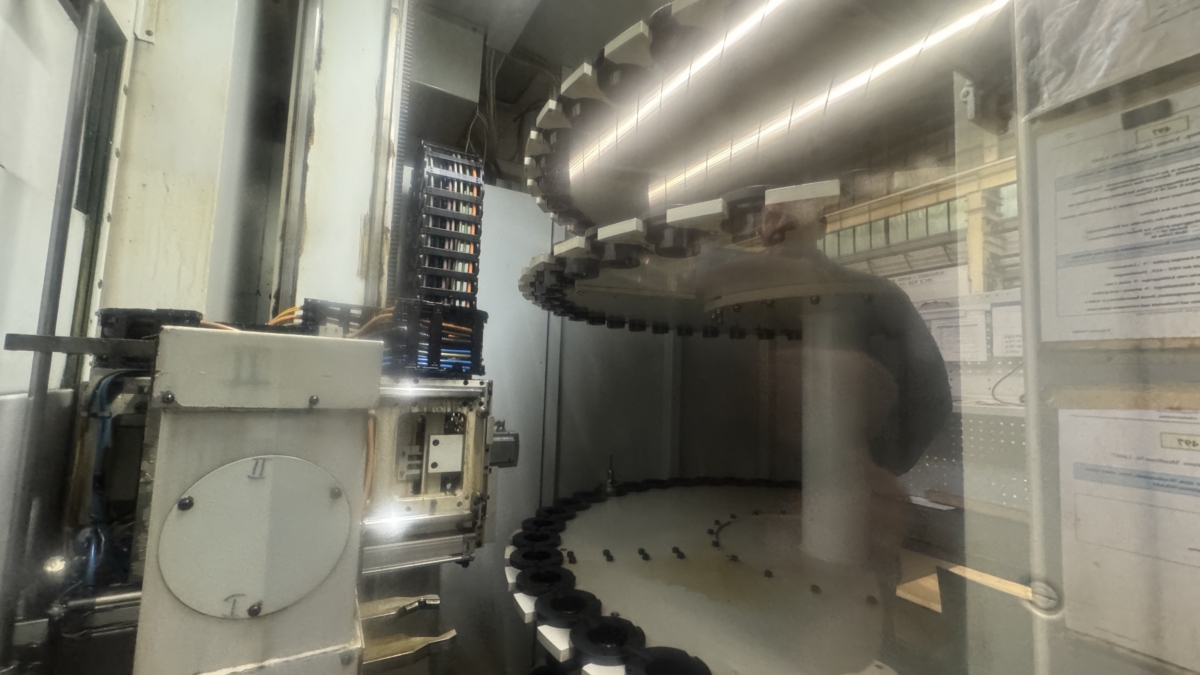

ATC tool changing device 200-pos.
Tool weight max. 30 kg
Tool holder HSK A 100
Tool diameter 250 mm
Tool length - max. 500 mm
Spindle speed: 5 - 6000 rpm
C-axis -10 to 370 deg
B-axis 5 to -95 deg
Column distance 3000 mm

Machine weight approx. 161 t
Space requirement approx. 20.5 x 11 x 6.3 m




Changes and errors in the technical details and information reserved.
