DATASHEET

MACHINE DETAILS

Stock No.
1022-E06309
Machinetype
Bed Type Milling Machine - Universal
Make
SORALUCE
Type
TR-25
Year of construction
2009
Control
CNC
Location
Germany
Country of origin
Spain
Delivery time
Immediately
Quotation
Ex site, without dismantling and loading
Price

TECHNICAL DETAILS



x-travel
2500 mm
y-travel
1600 mm
z-travel
1200 mm
Control
Heidenhain iTNC 530
Table dimensions
2860 x 1200 mm
tool taper
ISO 50
spindle turning speed range
20 - 3000 U/min
max. torque on the spindle
700 Nm
feed range
2 - 10000 mm/min
rapid traverse
25 m/min
spindle motor
32 kW
weight of the machine ca.
25,0 t
dimensions of the machine ca.
m



DESCRIPTION

Working hours (dated April 2025):
- Machine on: 34.320 h
- Control on: 23.218 h
- Auto. cycle: 11.987 h

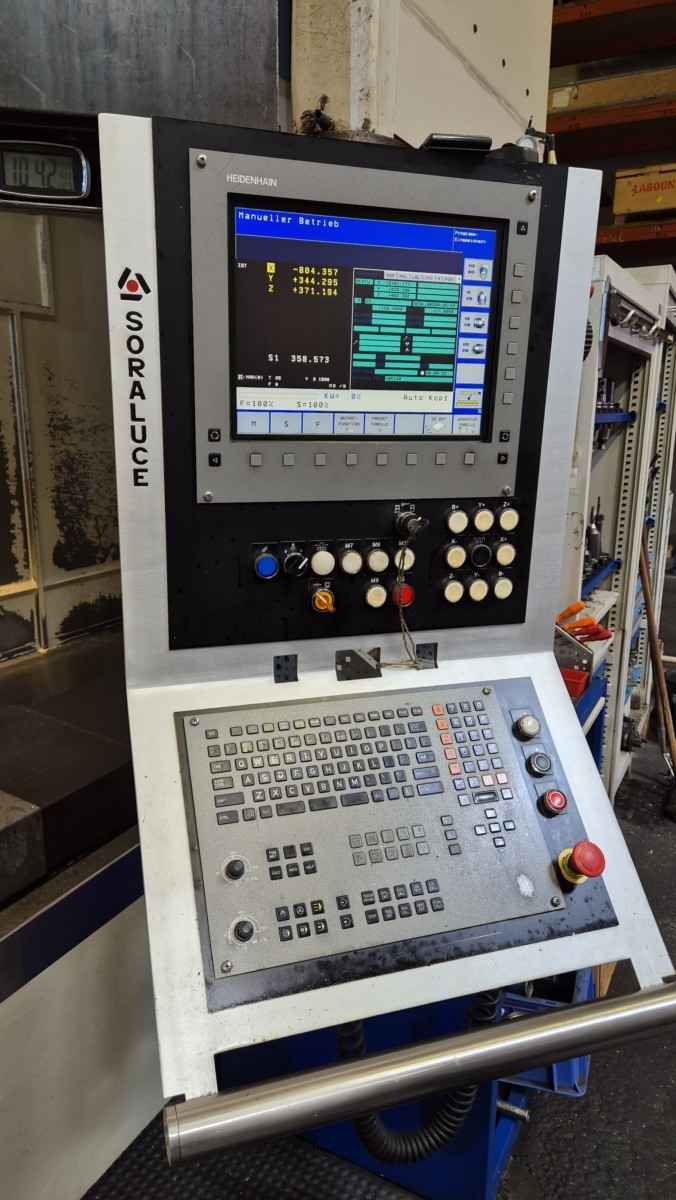

* CNC control HEIDENHAIN iTNC 530

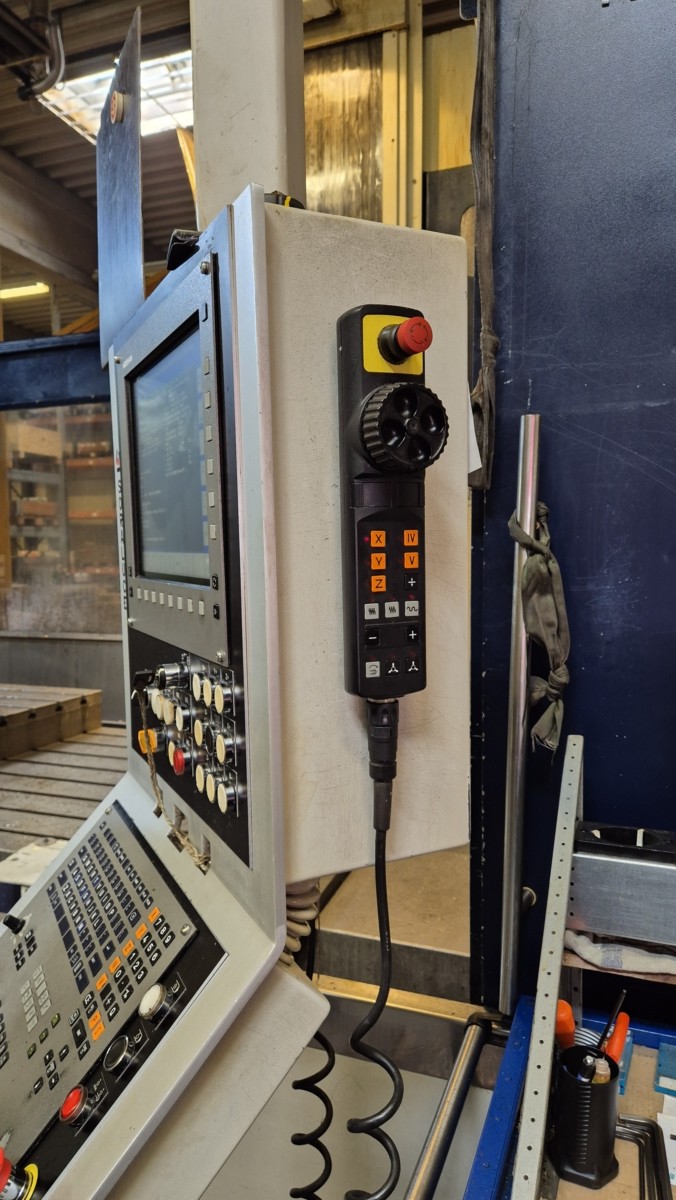

* Electronic handwheel

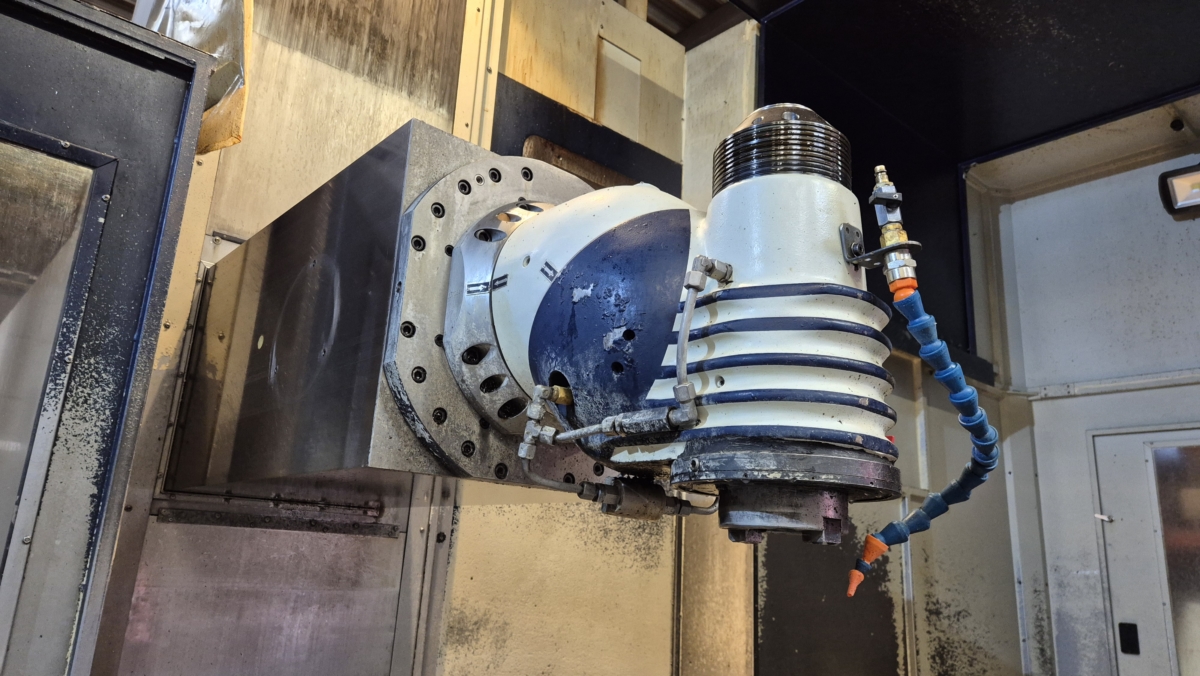

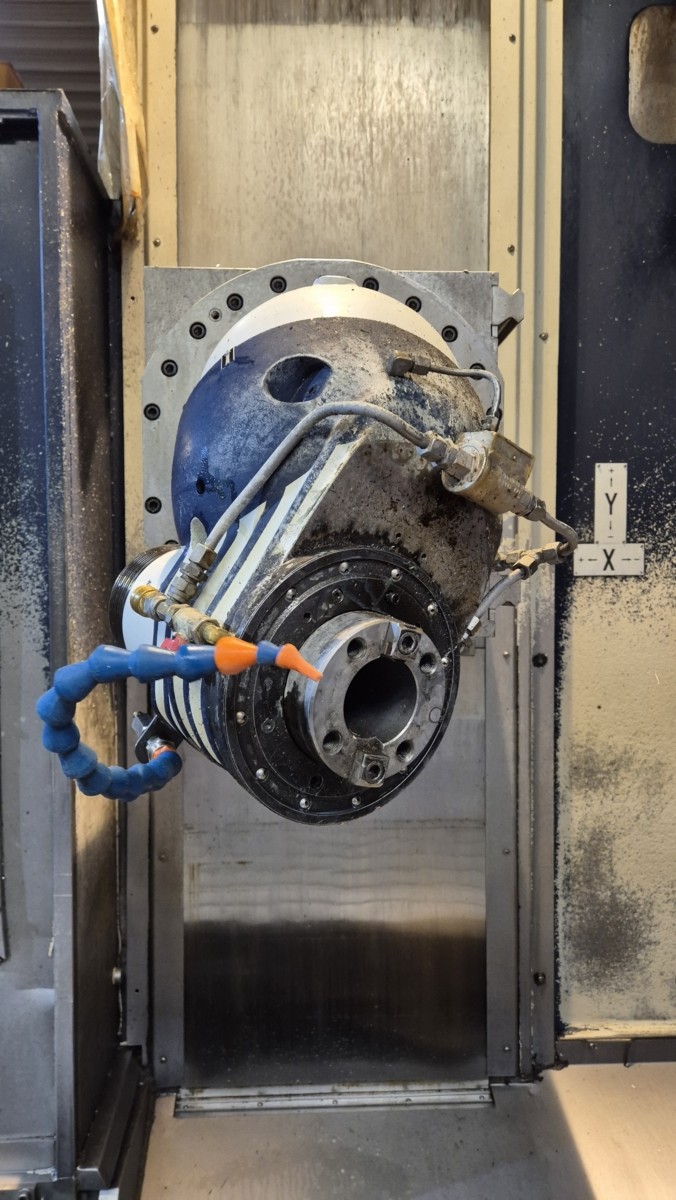

* Automatic universal milling head (overhauled in 2018), 2.5 / 2.5 deg. indexing

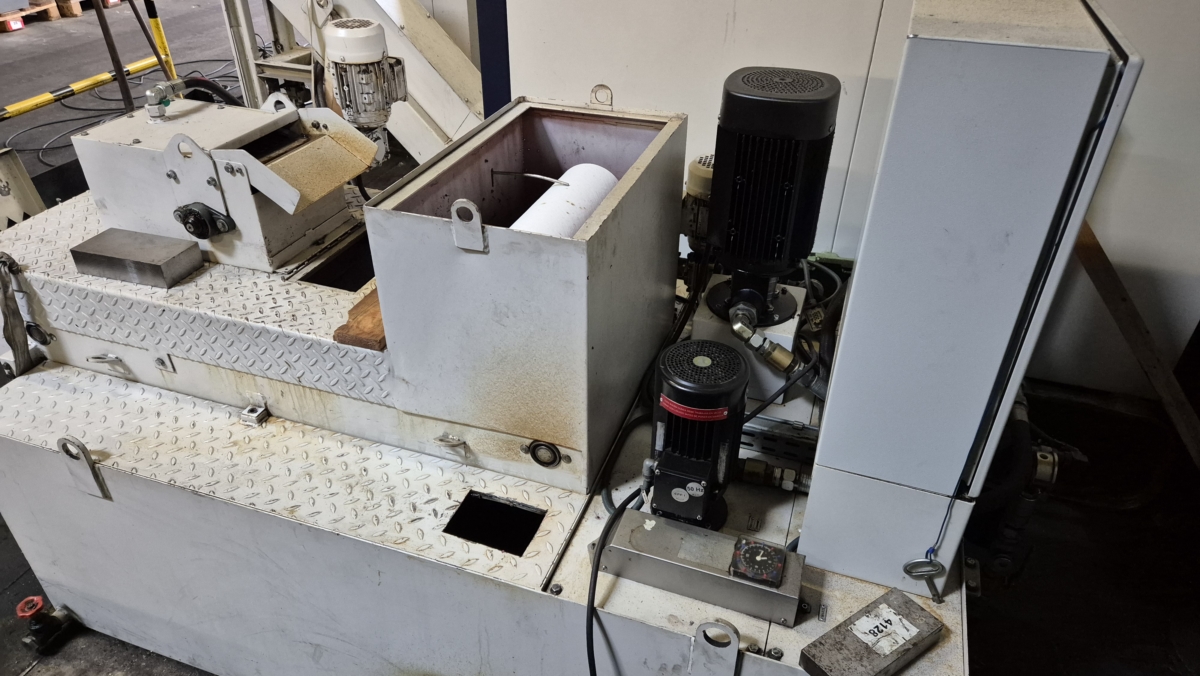

* Coolant device with paper band filter
* Cooling through the spindle
* Chip conveyor
* NC rotary table YRT F 1000/1250 (4th axis):
- Diameter 1250 mm
- Max. load 3500 kg
- Overall height 265 mm
- Table top thickness 125 mm
- Partial accuracy +/- 2.5"




Changes and errors in the technical details and information reserved.
