DATASHEET

MACHINE DETAILS

Stock No.
1022-E06306
Machinetype
Gear Hobbing Machine - Vertical
Make
WELTER / LIEBHERR
Type
LC1802-S CNC
Year of construction
1990/2013 retrofit
Control
CNC
Location
Germany
Country of origin
Germany
Delivery time
Short-dated
Quotation
Ex Works
Price

TECHNICAL DETAILS



max. wheel diameter
1800 mm
gear width
725 mm
max. module
5
min. module
Control
Siemens 840D sl
total power requirement
kW
weight of the machine ca.
27 t
dimensions of the machine ca.
8,8 x 6,1 x 3,25 m


DESCRIPTION

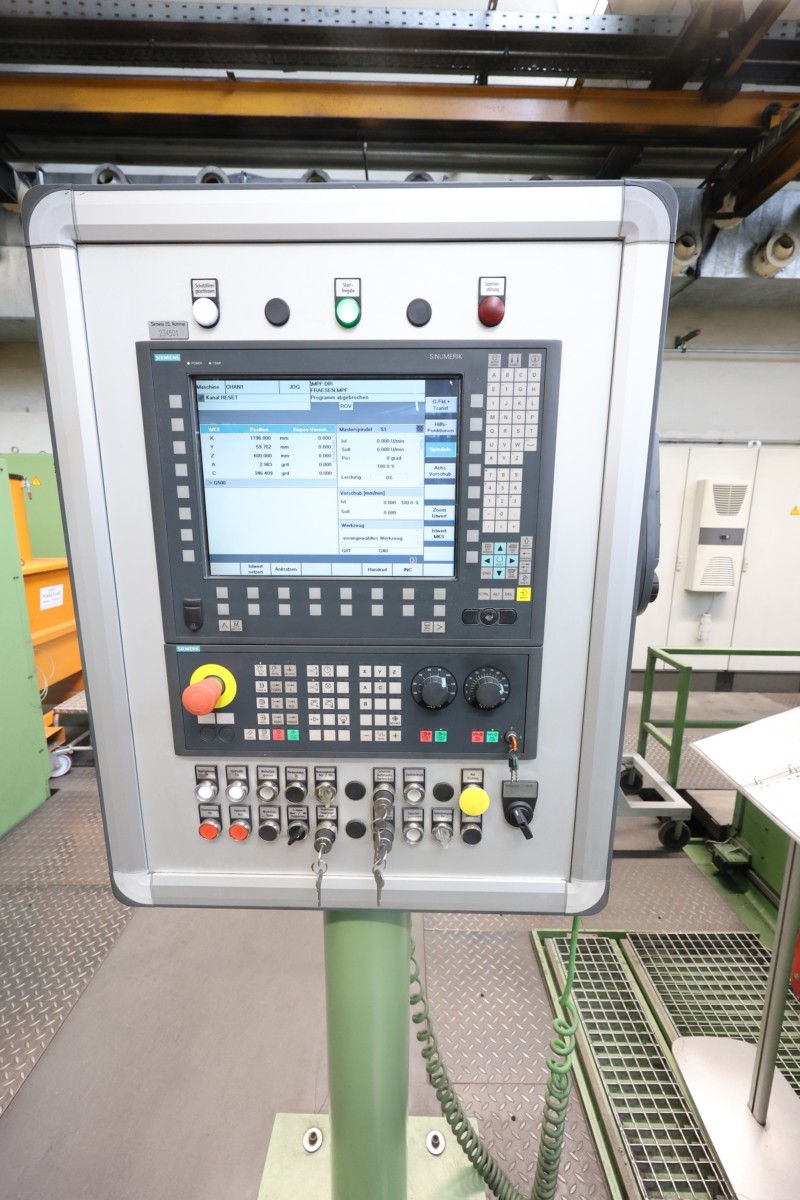

Control Siemens 840D sl

max. wheel diameter 1800 mm
gear width 725 mm
max. module 5 mm
axial travel 725 mm

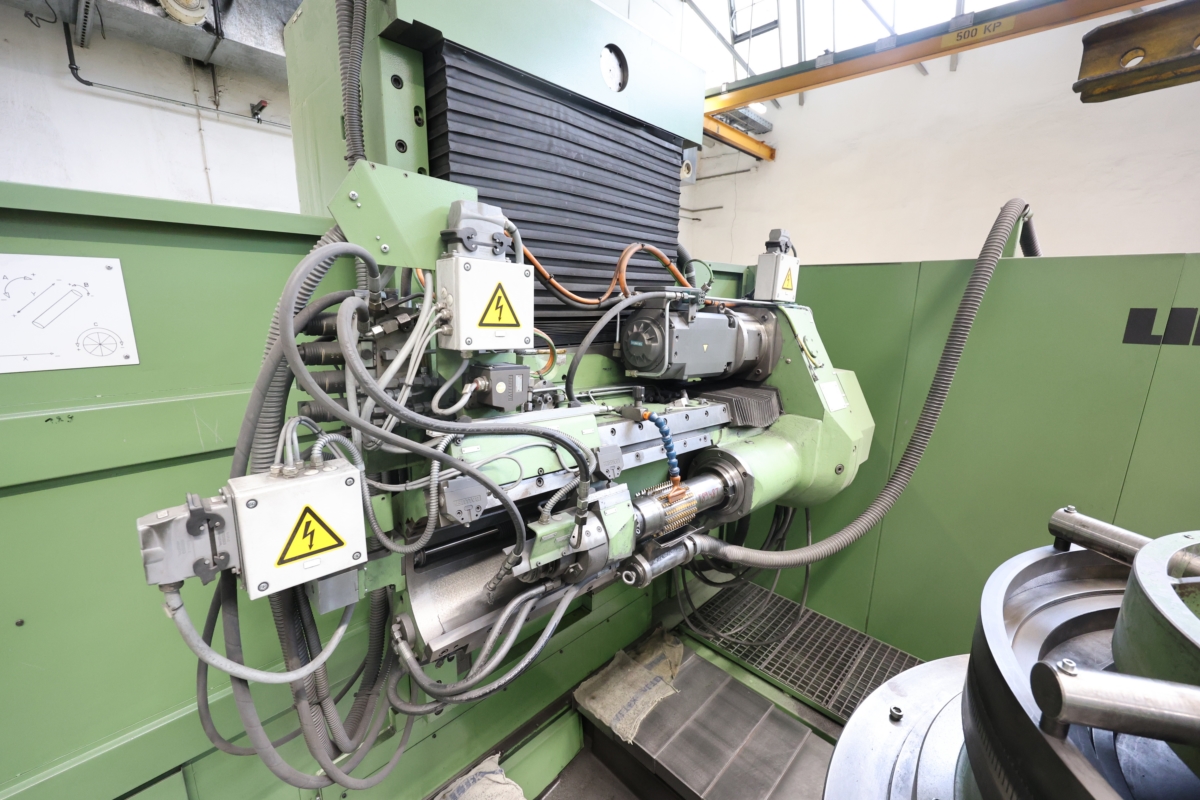

milling spindle:
turning speed range - stepless 44 - 440 rpm
hob diameter max. 240 mm
hob width - max. 300 mm

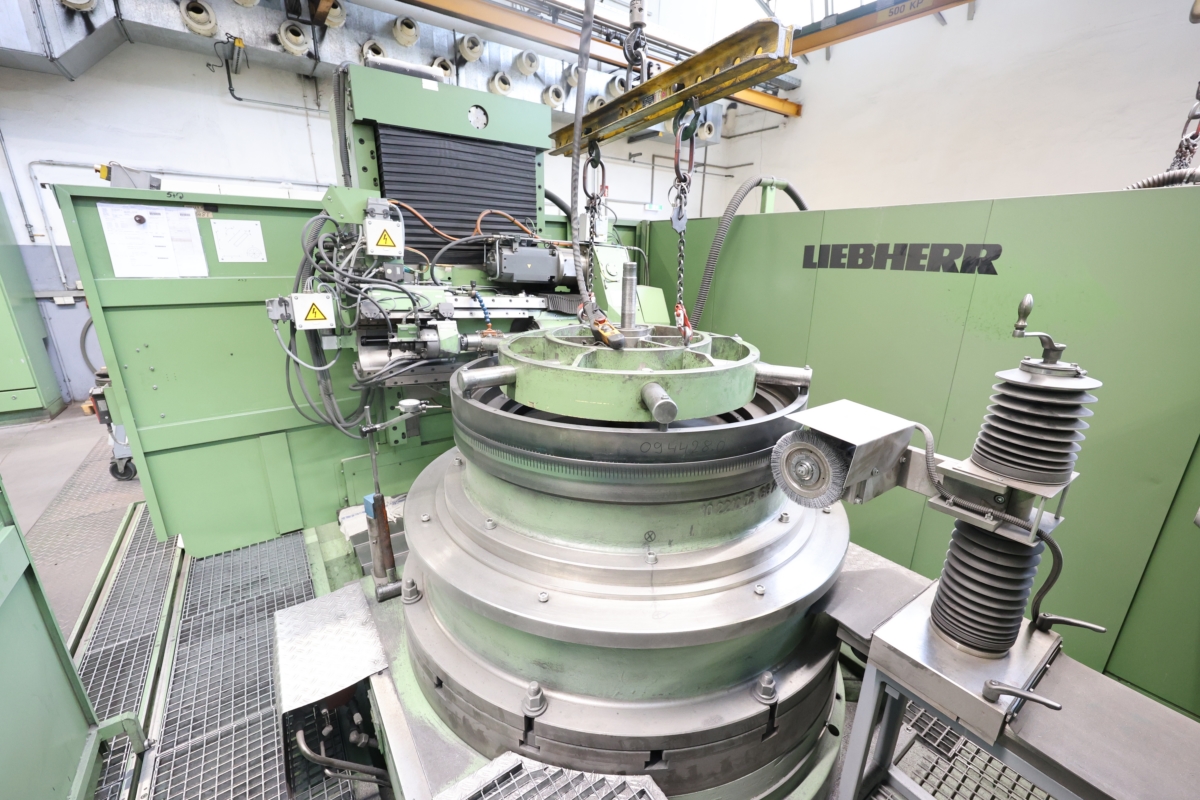

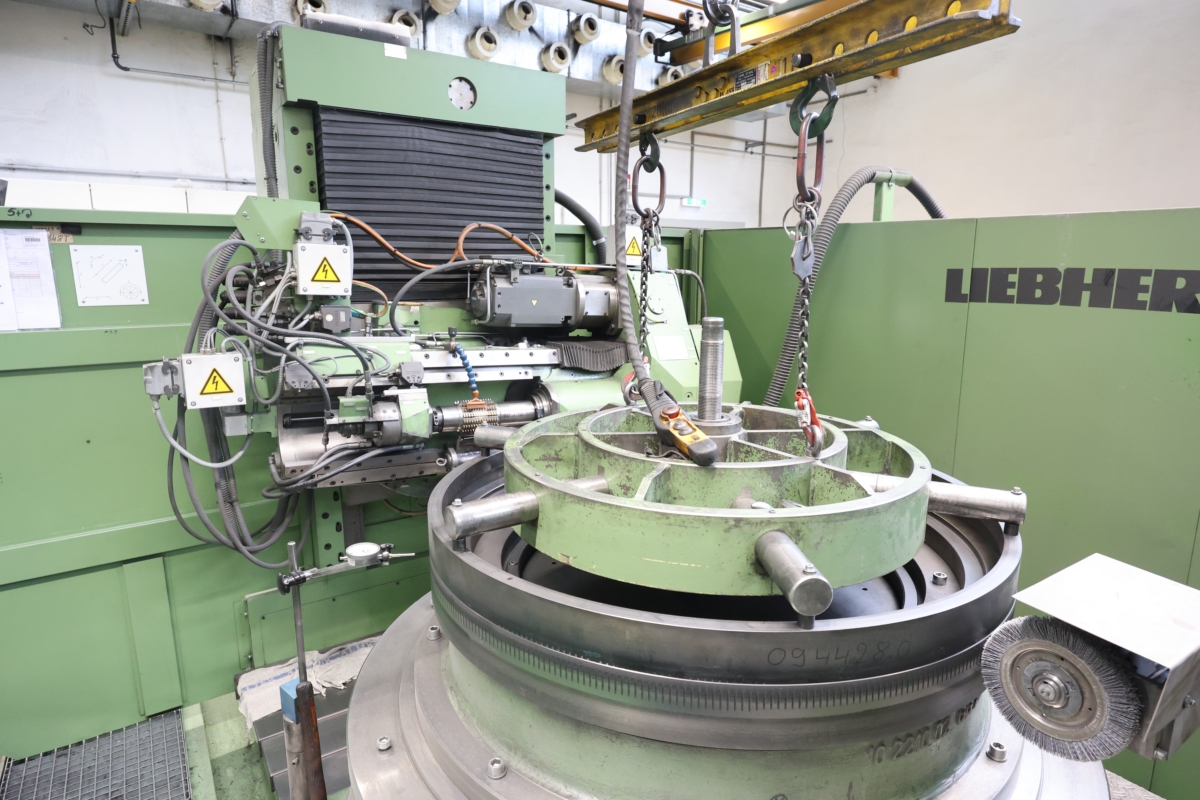

table diameter 1500 mm
boring diameter 350 mm
weight of the machine approx. 27 t
dimensions of the machine approx. 8,8 x 6,1 x 3,25 m

Equipment / Accessories:
- max. distance from clamping table to counterholder/to center of milling
spindle: 1045 mm
- milling spindle:
- max. axis distance between milling spindle and clamping spindle with/without
counterholder: 1200 mm
- min. axis distance between milling spindle and clamping spindle with/without
counterholder: 525 mm
- quick cutter change device
- chip extraction device
- milling arbors
- documentation




Changes and errors in the technical details and information reserved.
