DATASHEET

MACHINE DETAILS

Stock No.
1022-2430
Machinetype
Machining Center - Universal
Make
DECKEL-MAHO (DMG)
Type
HSC 55 Linear
Year of construction
2011
Control
CNC
Location
Germany
Country of origin
Rumänien
Delivery time
Short-dated
Quotation
Ex Works
Price

TECHNICAL DETAILS



x-travel
450 mm
y-travel
580 mm
z-travel
460 mm
Control
Heidenhain iTNC 530
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPTION

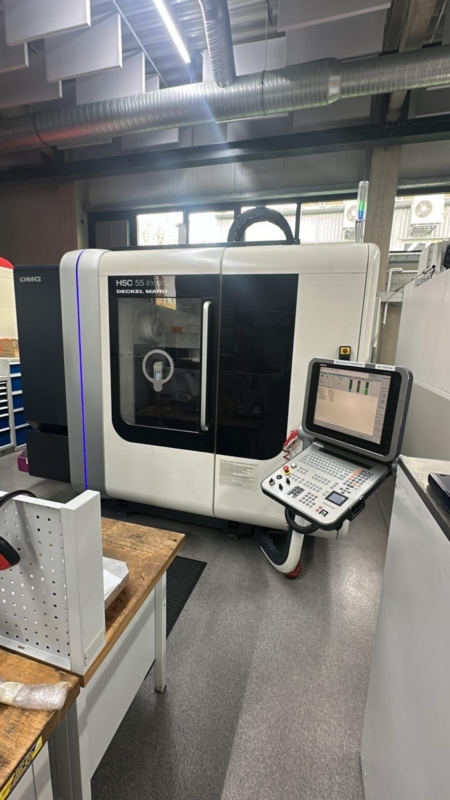

HSC Precision Machining Center HSC 55 linear
NEW DMG Design

Heidenhain iTNC530 3D Control
SmarT.NC User Interface

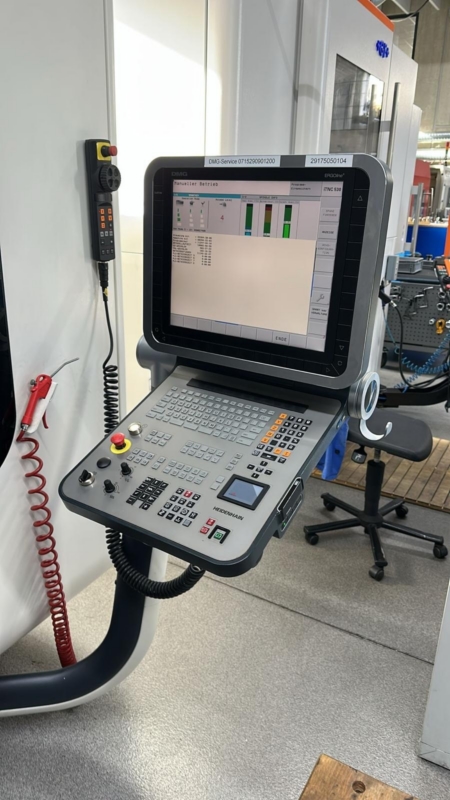

DMG ERGOLine® Control, 19" Screen

HSC 55 linear 5-Axis Version

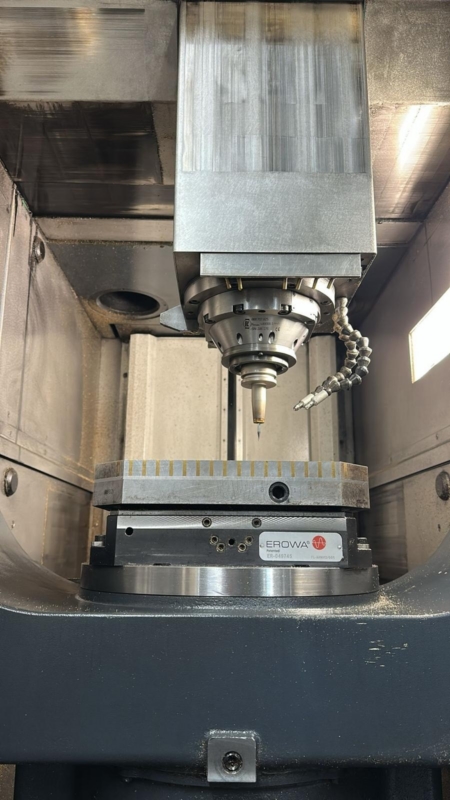

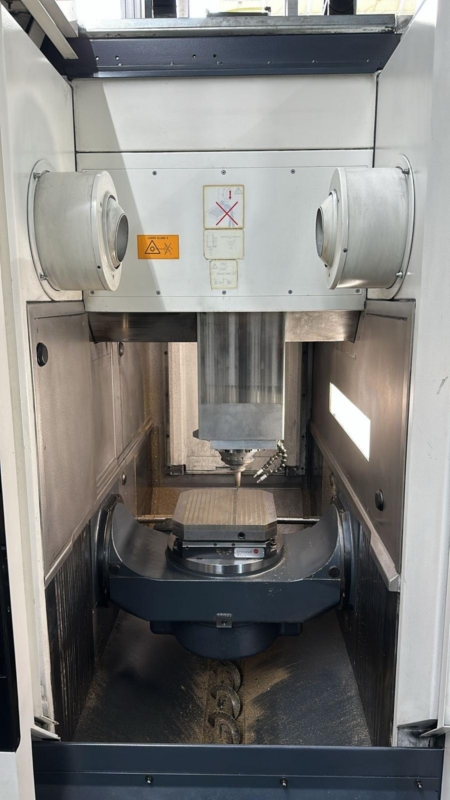

Rotary Swivel Table
Clamping Surface 400 x 400 mm
Swivel Range A-Axis +10/-110 deg.; C-Axis 360 deg.
Maximum Load Capacity 200 kg, Absolute Measuring Systems
Including Drive Cooling for A and C Axes

X = 450 mm, Y = 580 mm, Z = 460 mm
80 m/min Rapid Traverse
Spindle Speed 20 – 42,000 rpm
For HSK-E50 Tool Holder according to DIN 69893
AC Main Drive with 13/10 kW (40%/100% ED)
Tool magazine with 60 positions
Chain magazine with double gripper

Active cooling unit for main spindle and linear drives
Active cooling unit for control cabinet
Direct absolute measuring systems including purge air
Coolant/air cooling switch

Renishaw laser tool measurement
for measuring tool length and diameter
incl. calibration mandrel with tool holder

3D quickSET
Toolkit for checking and correcting
the kinematic accuracy of
5-axis machine configurations
(only in conjunction with optional probe)

PP 60 optical infrared probe

Electronic handwheel

Application Tuning Cycle (ATC) software
Selection of the optimal machining mode for the current operation

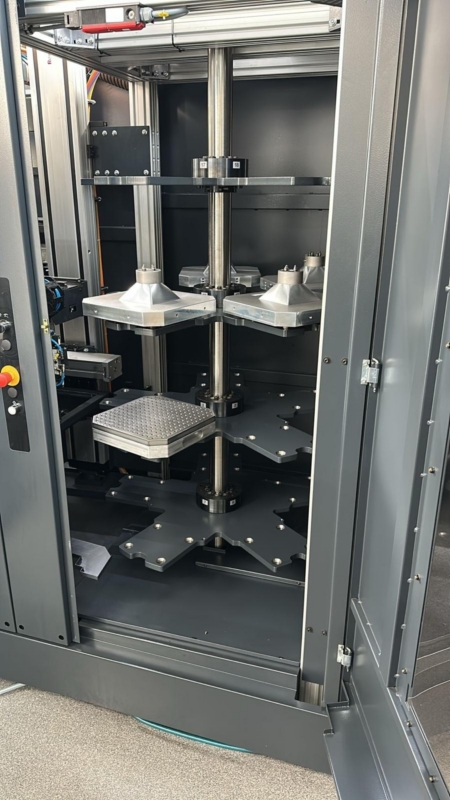

20-position pallet tower storage
and transfer station
Pallet size: UPC 320x320mm
Loading door and air supply at the worktable
Pallet management via machine control
Including UPC-P chuck

Four-color indicator light

Air blower through the spindle center,
selectable via M-function and softkey
Maintained air with low oil content

Dust extraction for graphite

Rotating viewing window

Operating mode 4
Process monitoring in production

Laminated safety glass window




Changes and errors in the technical details and information reserved.
