DATASHEET

MACHINE DETAILS

Stock No.
1022-2425
Machinetype

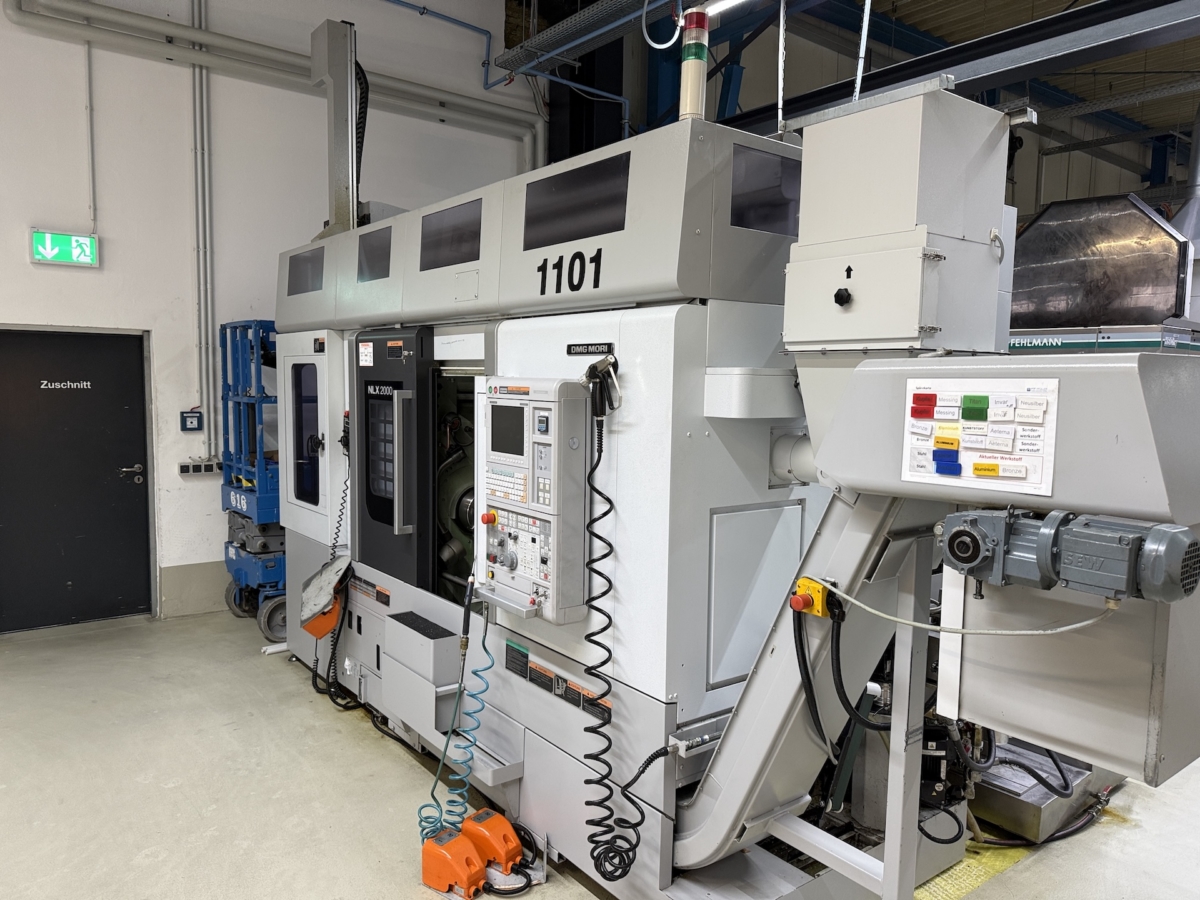

CNC Turning- and Milling Center
Make
DMG MORI
Type
NLX 2000SY/500
Year of construction
2014
Control
CNC
Location
Monheim (Germany)
Country of origin
Japan
Delivery time
Immediately
Quotation
Ex warehouse, loaded on truck
Price

TECHNICAL DETAILS



turning diameter
356 mm
turning length
510 mm
control
M 730 BM
travel -x axis
260 mm
travel -y axis
-50 / +50 mm
travel -z axis
590 mm
Travel subspindle
(B) 624 mm
bar material dia.
65 mm
main spindle speeds:
5000
transmission ratio
2
power capacity
15 / 11 kW
Subspindle spindle speeds
6000
power capacity
11 / 7,5 kW
rapid traverse
(X,Y,Z,B) 30/10/30/30 m/min
total power requirement
kVA
weight of the machine ca.
6,6 t
dimensions of the machine ca.
m



DESCRIPTION

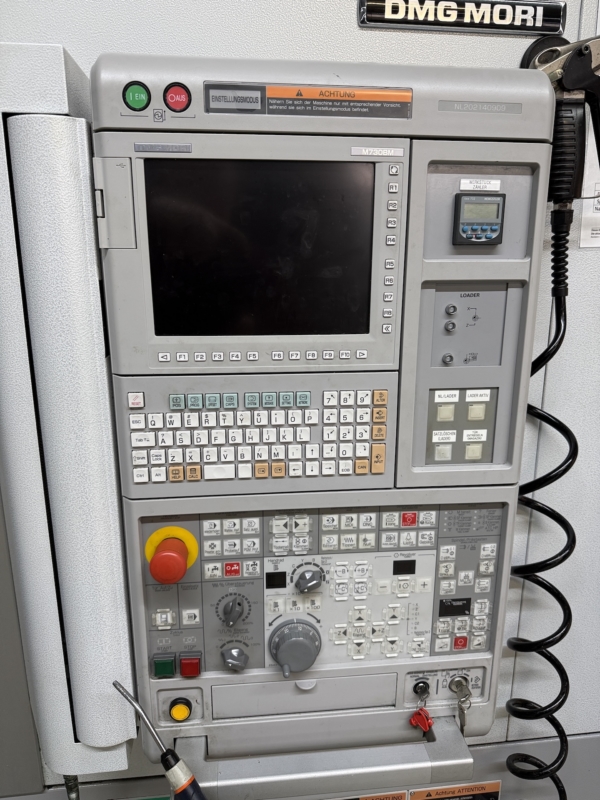

* CNC control Mitsubishi M 730 BM

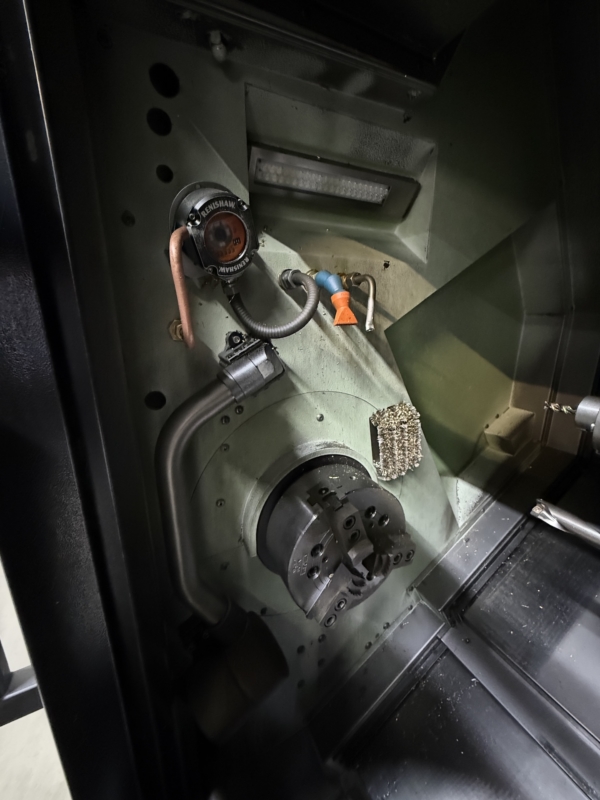

* Mainspindle with 3-jaw power chuck KITAGAWA N-08, diameter 210 mm
* Subspindle with 3-jaw power chuck HAINBUCH B-TOP 165-43

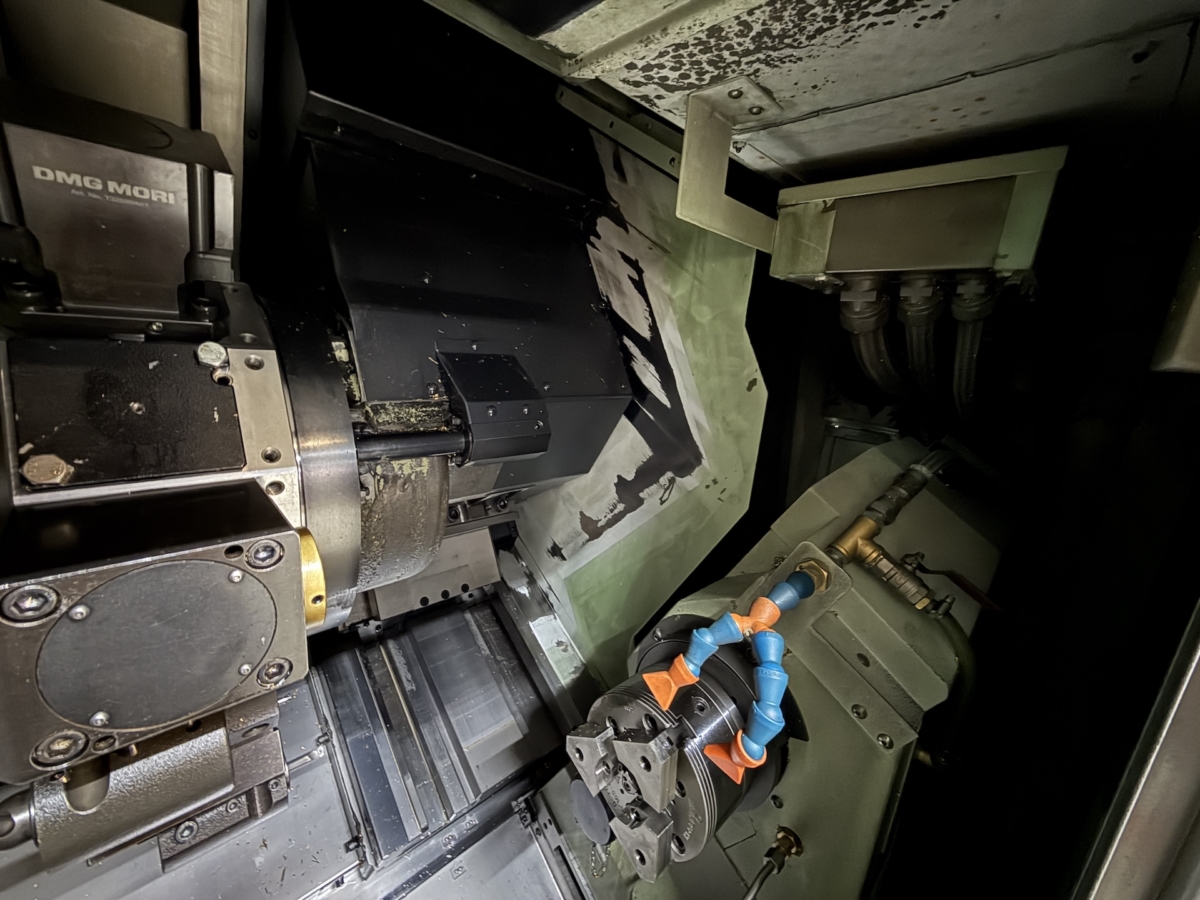

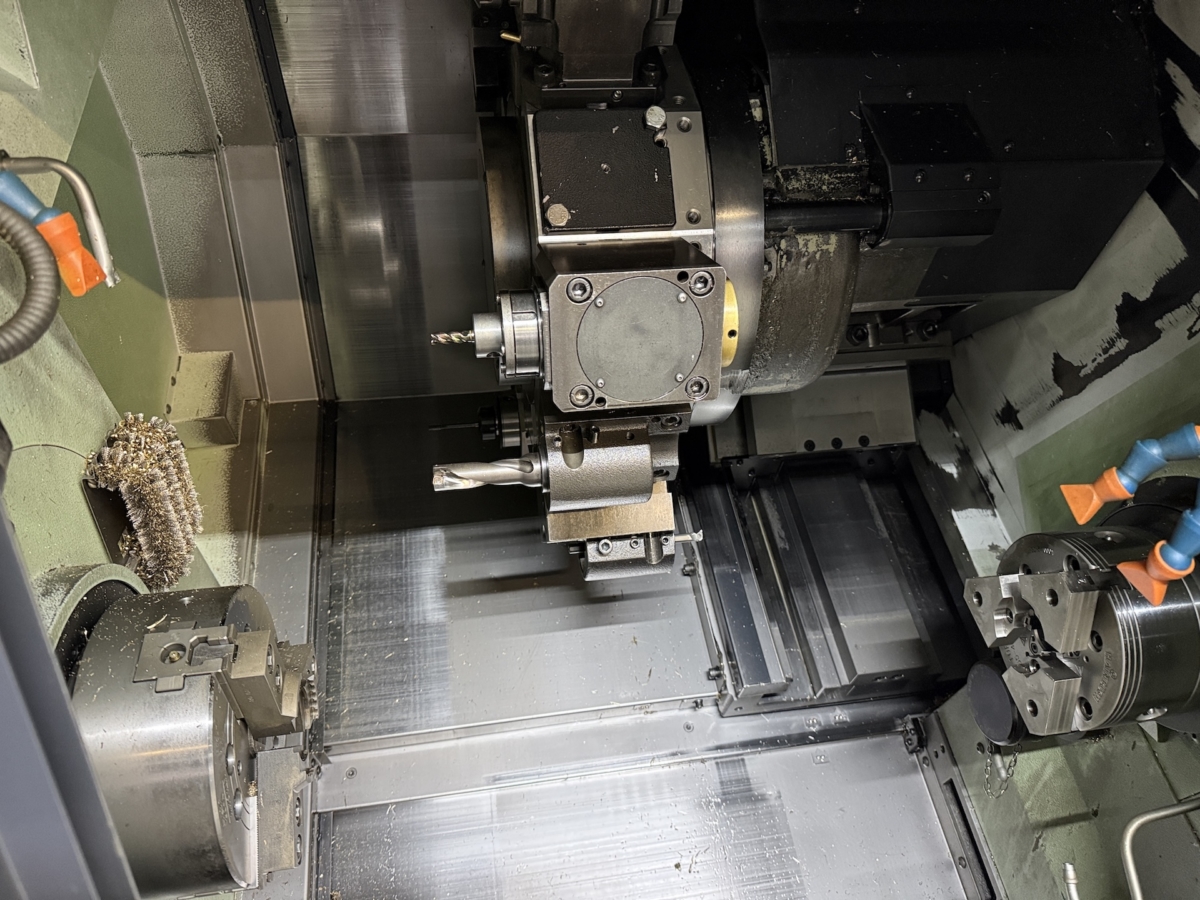

* 12-station turret, tool spindle speed 10000 rpm, power 5.5/3.7 kW
* Y-axis travel
* C-axis
* High/low pressure chuck system for main and subspindle
* MABEO high-pressure pump with 1.5 MPa filter unit
* Coolant sprayer on the chuck for main and subspindle
* Coolant sprayer for the machine bed cladding
* Oil mist separator

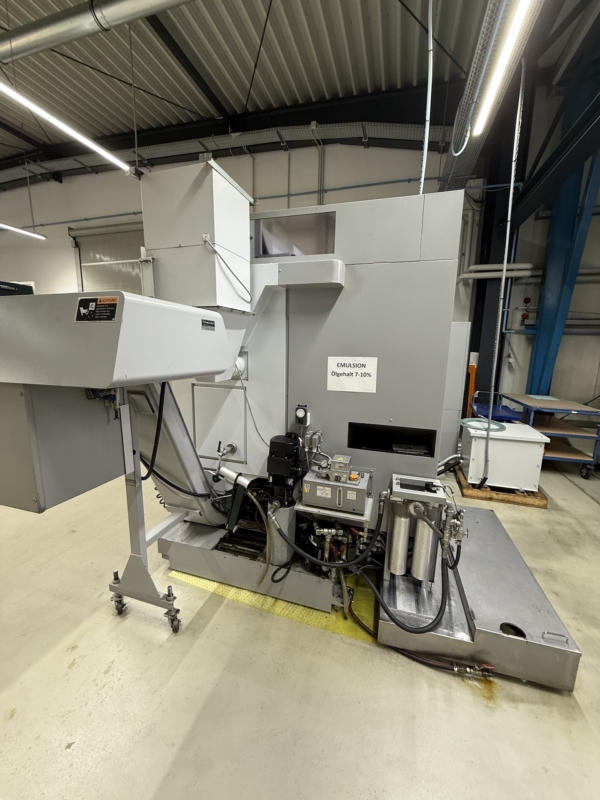

* Chip conveyor
* Renishaw workpiece measuring system with optical signal transmission, subspindle
* Cooling of the ball screw in the X-axis

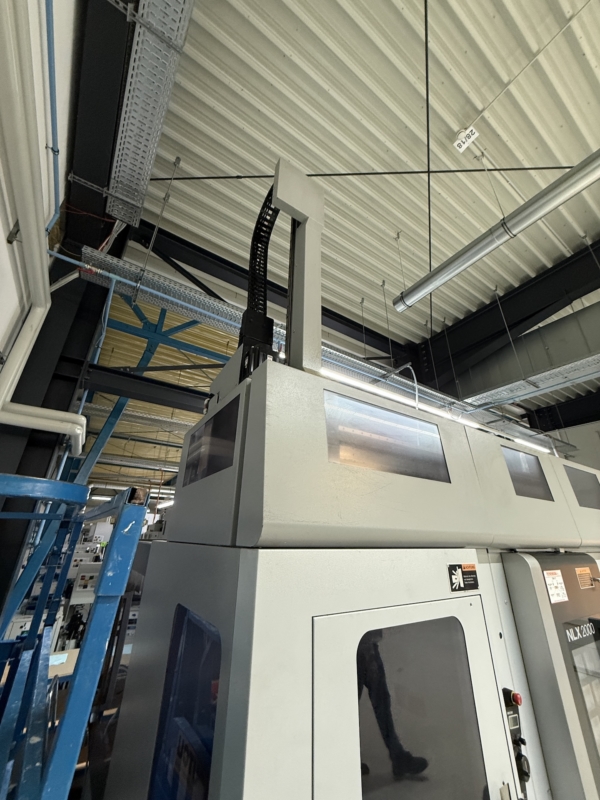

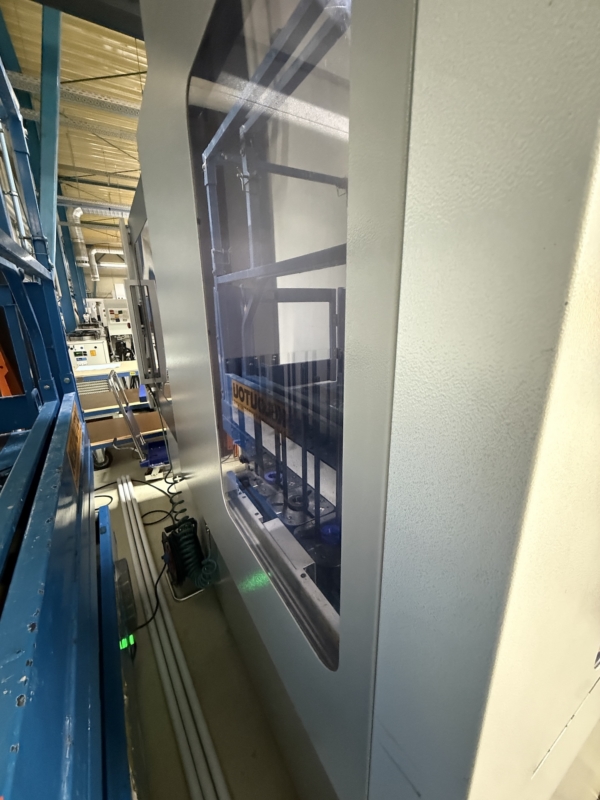

* Gantry loader, left-hand installation, 14-station storage, 20-pallet workpiece storage,
Double gripper conveyor




Changes and errors in the technical details and information reserved.
