DATASHEET

MACHINE DETAILS

Stock No.
1022-2400
Machinetype
Bed Type Milling Machine - Universal
Make
KIHEUNG
Type
U 1350
Year of construction
2009
Control
CNC
Location
NRW / Germany
Country of origin
Korea
Delivery time
Immediately
Quotation
Ex site, without dismantling and loading
Price

TECHNICAL DETAILS



x-travel
4000 mm
y-travel
1350 mm
z-travel
(Vert.) 1600 mm
Control
Heidenhain iTNC 530

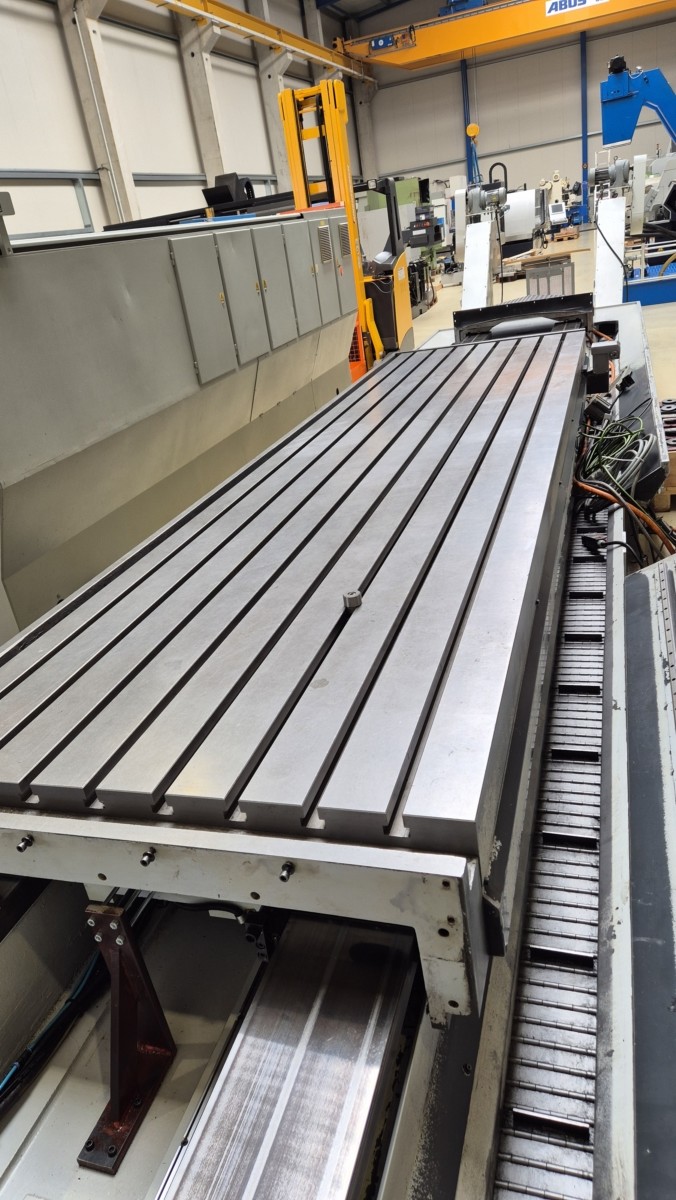

table surface area
4200 x 1150 mm
table load
13 t
tool taper
ISO 50
spindle turning speed - stepless
0 - 3000 U/min
transmission ratio
2
spindle motor
28/38 kW
feed range
5000 mm/min
rapid traverse
(X/Y) 12 m/min
rapid traverse
(Z) 10 m/min
weight of the machine ca.
37 t
dimensions of the machine ca.
12,9 x 6,53 x 3,79 m


DESCRIPTION

January 2025: The milling head was overhauled (new bevel gears and bearings). Costs 38.000,- Euro.

Working hours (dated 31. July 2025):
Machine on: 38.483 h
Auto cycle: 12.798 h
Spindle hours: 11.645 h


* CNC-control HEIDENHAIN iTNC 530
* Electronic handwheel
* 50-position tool changer

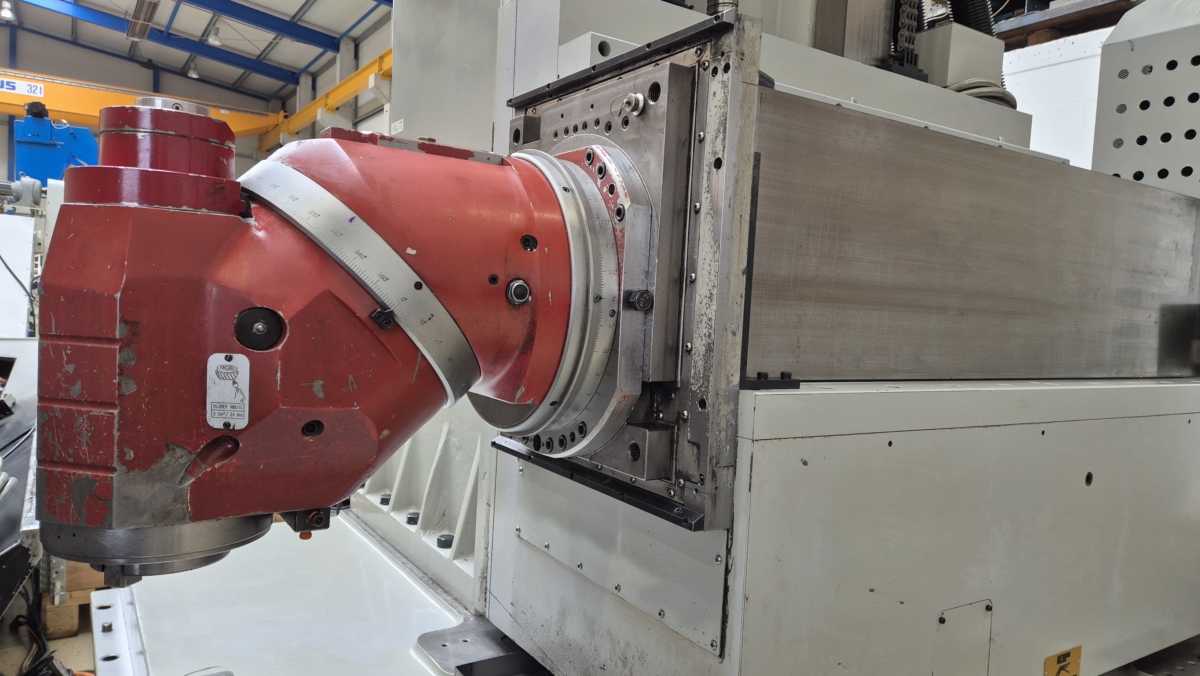

* Controlled universal milling head, indexable 2.5 / 2.5 deg.
* Coolant device
* Cooling through the spindle
* 2 chip conveyors
* Oil cooler
* Measuring probe
* Machine documentation




Changes and errors in the technical details and information reserved.
