DATASHEET

MACHINE DETAILS

Stock No.
1022-2392
Machinetype
Band Saw - Automatic - Horizontal
Make
KASTO
Type
TEC AC 7
Year of construction
2007
Control
CNC
Location
Monheim (Germany)
Country of origin
Germany
Delivery time
Immediately
Quotation
Ex warehouse, loaded on truck
Price

TECHNICAL DETAILS



cutting diameter
730 mm
saw band length
9195 x 67 x 1,6 mm
cutting width
830 mm

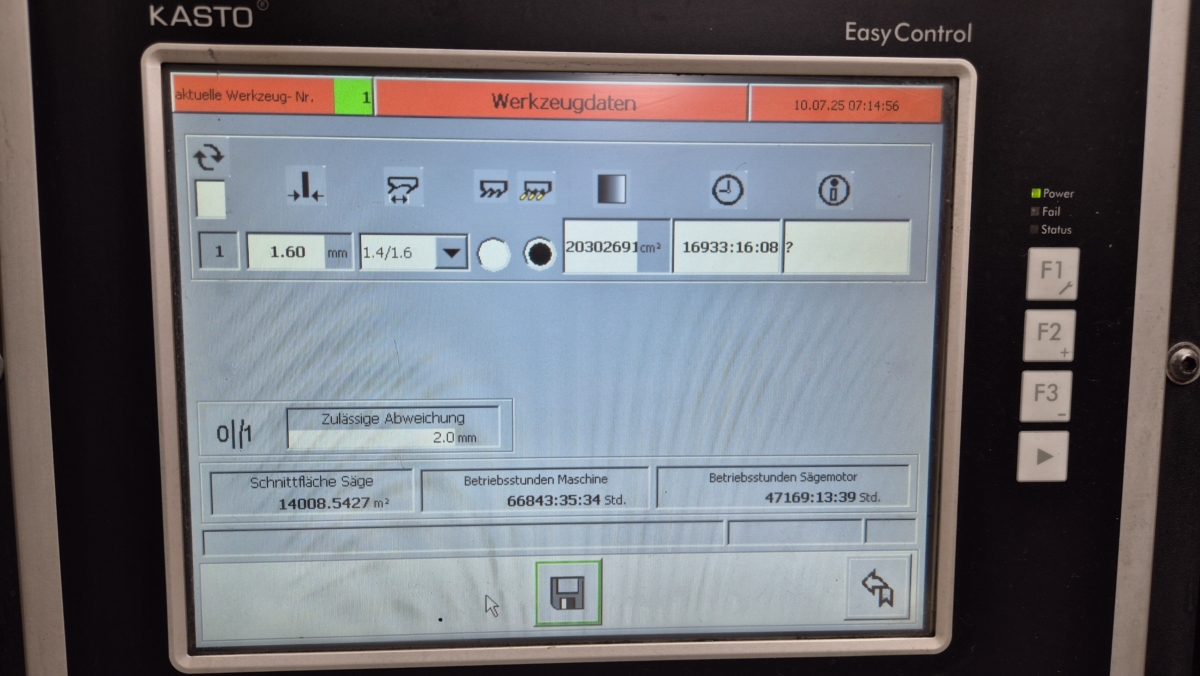

Control
Kasto EasyControl
saw band speed
12 - 120 m/min
total power requirement
30 kW
weight of the machine ca.
11,6 t
dimensions of the machine ca.
4800 x 2600 x 2870 mm



DESCRIPTION

Heavy-duty, high-performance band saws with a horizontally and parallel-traversing
saw blade for cutting solid material, profiles, and pipes of all qualities,
including difficult-to-cut materials such as titanium, Hastelloy, Inconel, etc.

The optimal use of carbide or bi-metal saw blades was consistently considered
during the development of these machines.


Cutting range
Cutting diameter: 730 mm
Cutting width: 830 mm
Saw blade size: 9195 x 67 x 1.6 mm
Total power requirement: 30 kW
Machine weight: 11600 kg
Machine dimensions (L x W x H): 4800 x 2600 x 2870 mm

Equipment:
Carbide package

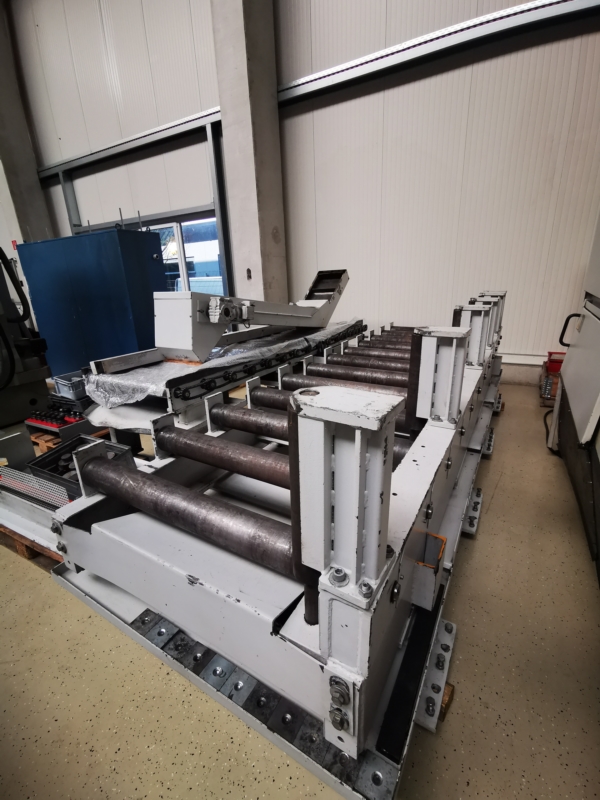

With driven heavy-duty roller conveyors for the infeed and outfeed sides.
Roller conveyor on the inlet side, dimensions (LxWxH) 4000x1000x500 mm
Roller conveyor on the outlet side, dimensions (LxWxH) 3000x1000x500 mm
Weight 2000 kg
Chip conveyor




Changes and errors in the technical details and information reserved.
