DATASHEET

MACHINE DETAILS

Stock No.
1022-E06334
Machinetype
Portal - Machining Center
Make
AXA
Type
VPC-55U XTS
Year of construction
2014
Control
CNC
Location
Deutschland
Country of origin
Germany
Delivery time
Immediately
Quotation
ex foundation
Price

TECHNICAL DETAILS



x-axis
2000 mm
y-axis
1600 mm
z-axis
900 mm

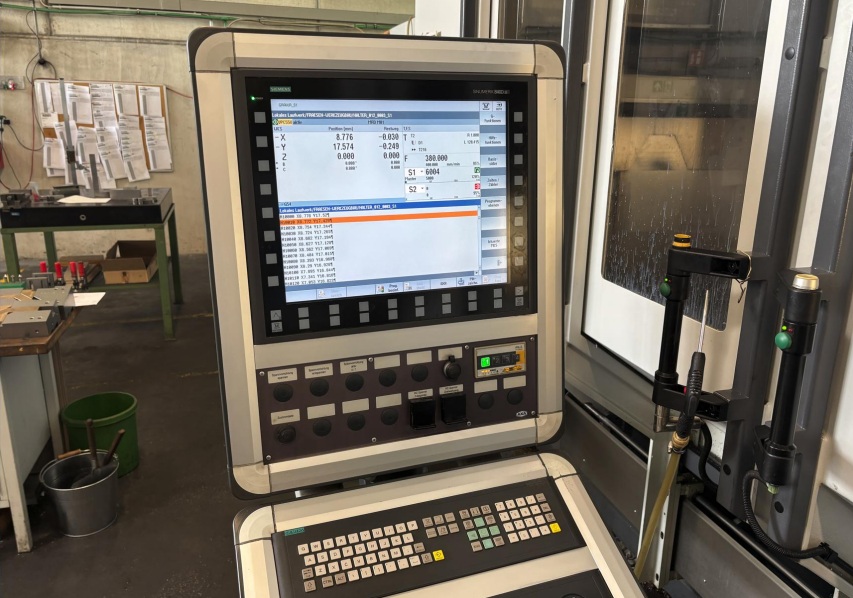

Control
Siemens 840 D
total power requirement
100 kVA
weight of the machine ca.
40 t
dimensions of the machine ca.
m


DESCRIPTION

The machine is fully functional and still in full operation.

The machine can be inspected under power.

The machine is capable of 5-axis simultaneous machining.

X-axis travel:
2,000 mm
Y-axis travel:
1,600 mm
Z-axis travel:
900 mm
Rated apparent power:
100 kVA
Torque:
350 Nm
Control manufacturer:
Siemens
Control model:
840 D

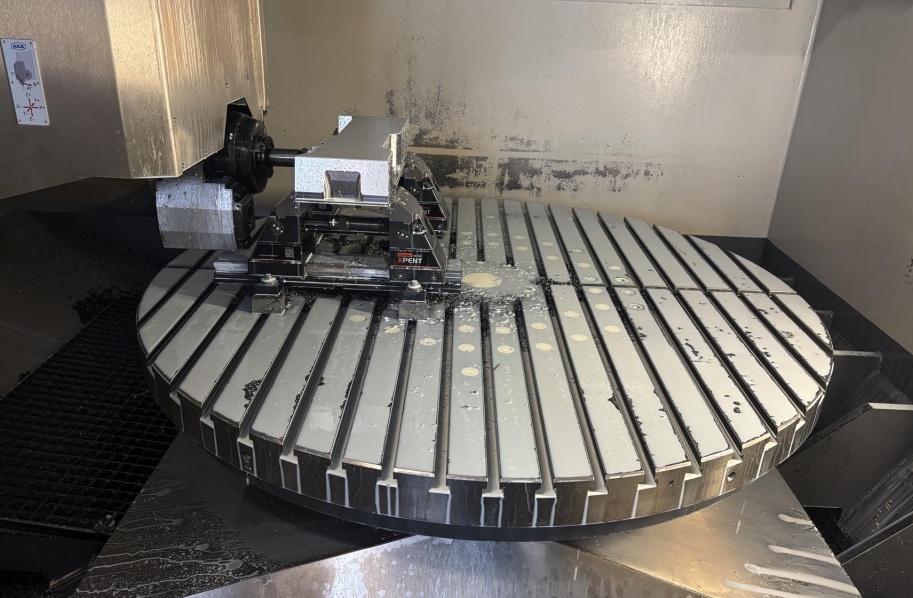

Rotary table diameter:
1,600 mm
Speed ??(max.):
400 rpm
Total weight:
40,000 kg
Spindle speed (min.):
30 rpm
Spindle speed (max.):
9,000 rpm
Number of spindles:
1

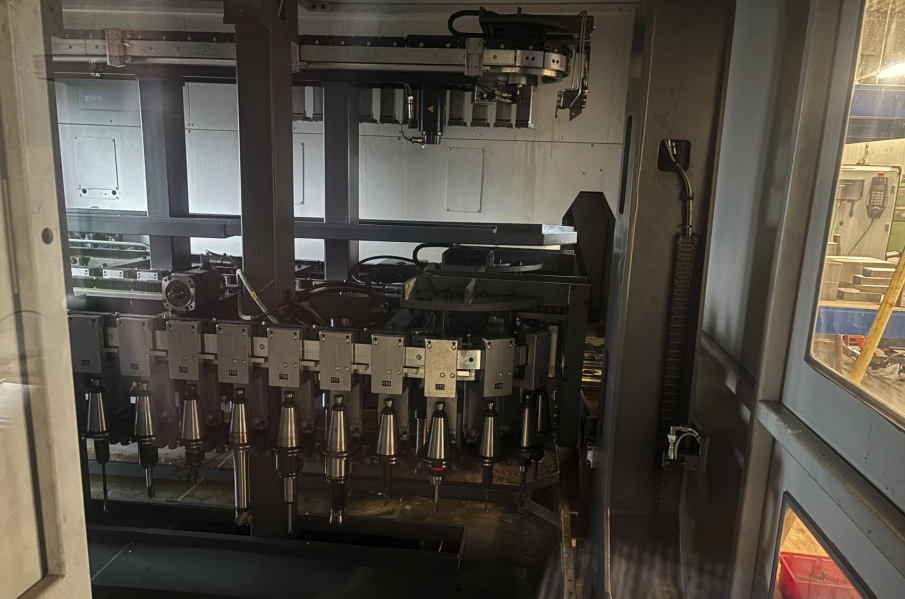

Number of slots in the tool magazine:
80
Equipment:

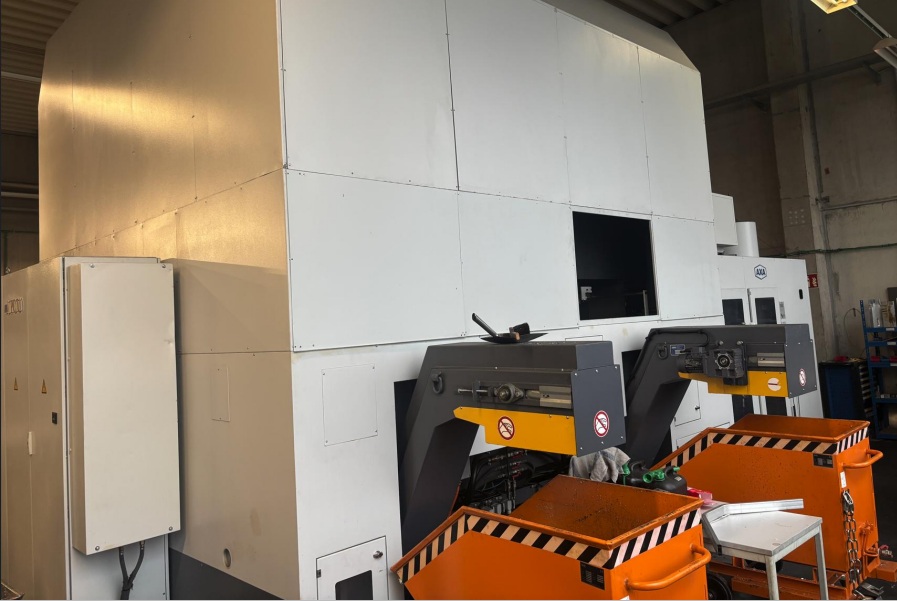

Documentation/manual, continuously adjustable speed, chip conveyor




Changes and errors in the technical details and information reserved.
