HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-2424
Tipo de máquina
Surface Grinding Machine - Horizontal
Marca
OKAMOTO
Modelo
ACC 64 CA-iQ
Año de fabricación
2019
Control
CNC
Ubicación
Monheim (Germany)
País de origen
Thailand
Tiempo de entrega
Immediately
Condición de entrega
Ex warehouse, loaded on truck
Precio

DETALLES TÉCNICOS



grinding length
600 mm
grinding width
400 mm
workpiece height
400 mm
total power requirement
kW
weight of the machine ca.
4,5 t
dimensions of the machine ca.
3592 x 3519 x 2203 mm



DESCRIPCIÓN

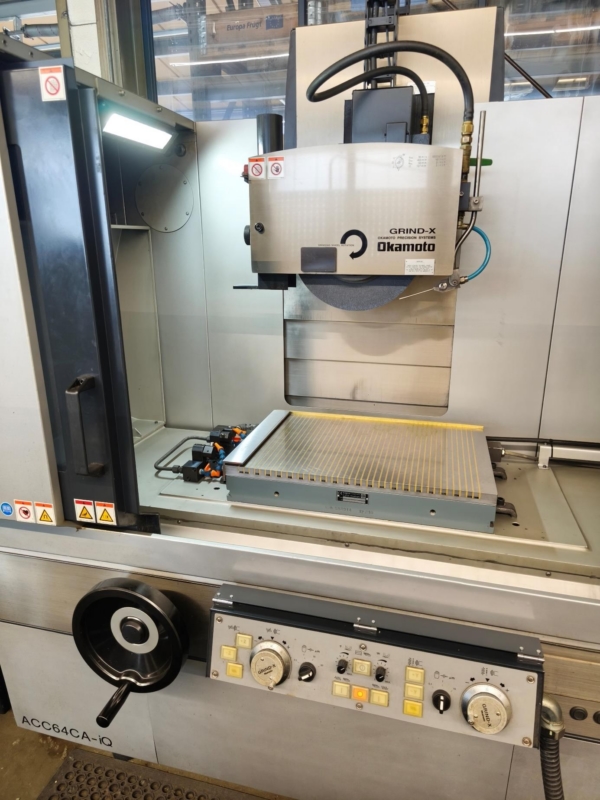

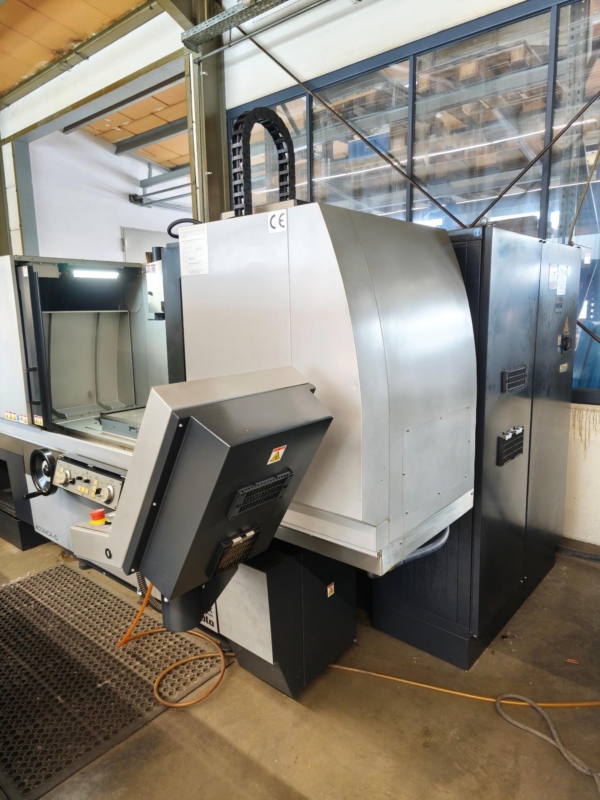

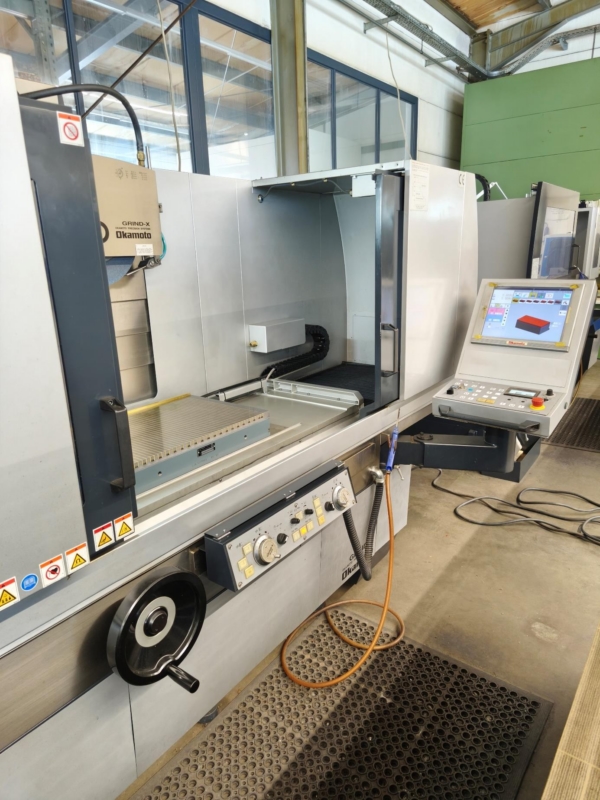

Horizontal surface grinder in almost new condition

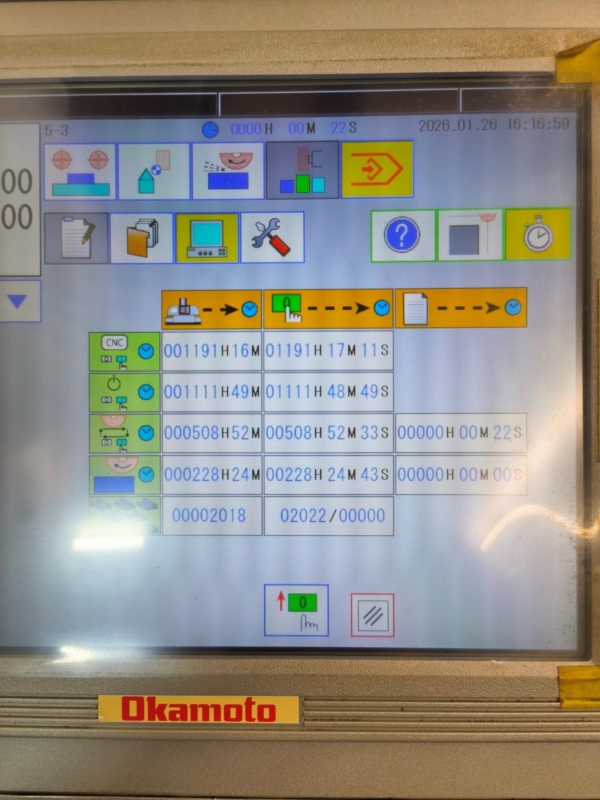

Operating hours:
CNC on: 1198 hours
Machine on: 1117 hours
Automatic operation: 509 hours
Grinding operation: 228 hours

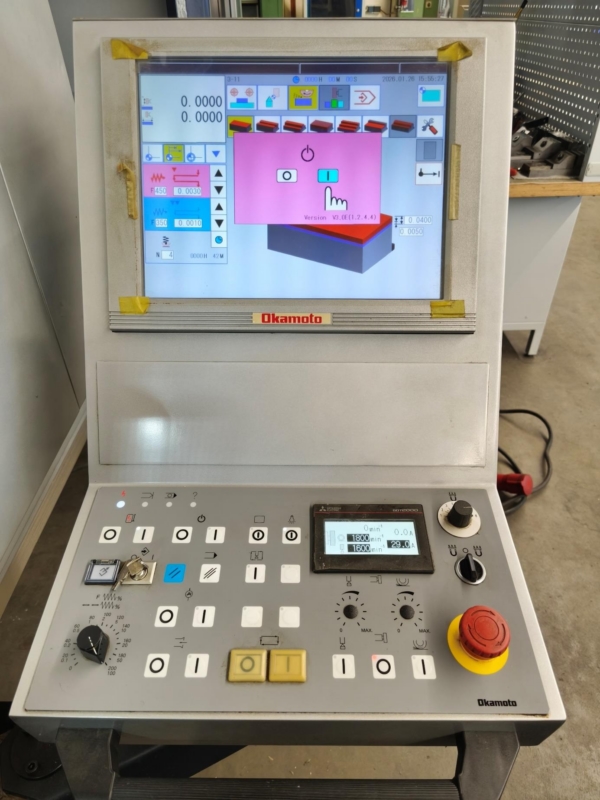

Okamoto Touch Screen Control

Travel X-axis: 600 mm
Travel Y-axis: 22.5 – 497 mm
Travel Z-axis: 400 mm
Speed range rpm: 1-2800 (stepless)
Rapid traverse mm/min: 4000
Main drive kW: 7.5
Maximum table load in kg: 1000

Accessories:
- Electro-permanent magnetic clamping plate: 400 x 600 P13 mm, height 80 mm (make Wagner)
- 2 grinding wheel flanges
- Table dresser
- Automatic straight dresser, spindle box mounted
- Automatic compensation of the wheel dressing amount
- Automatic central lubrication
- Ball screw in the Y and Z axes with AC servo motor and measuring system

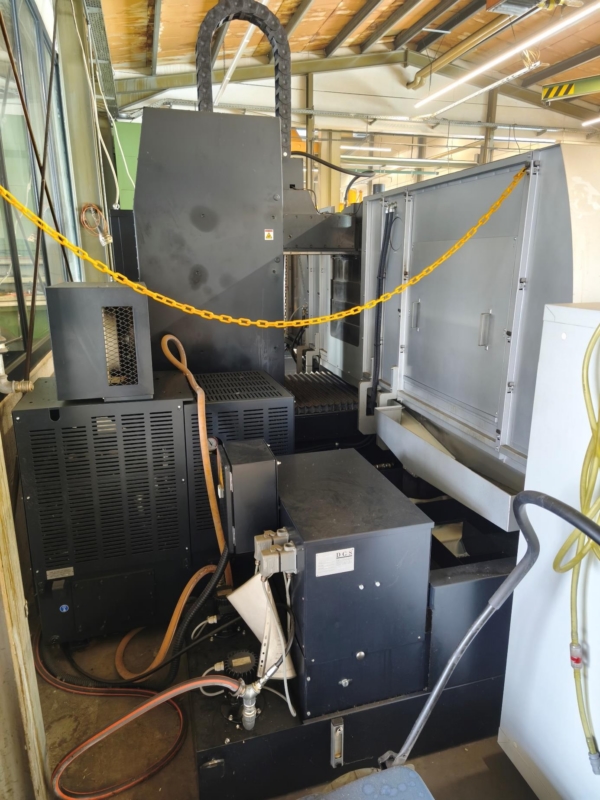

- Coolant system with belt filter system




Cambios y errores en los detalles técnicos y la información reservada.
