HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-2396
Tipo de máquina

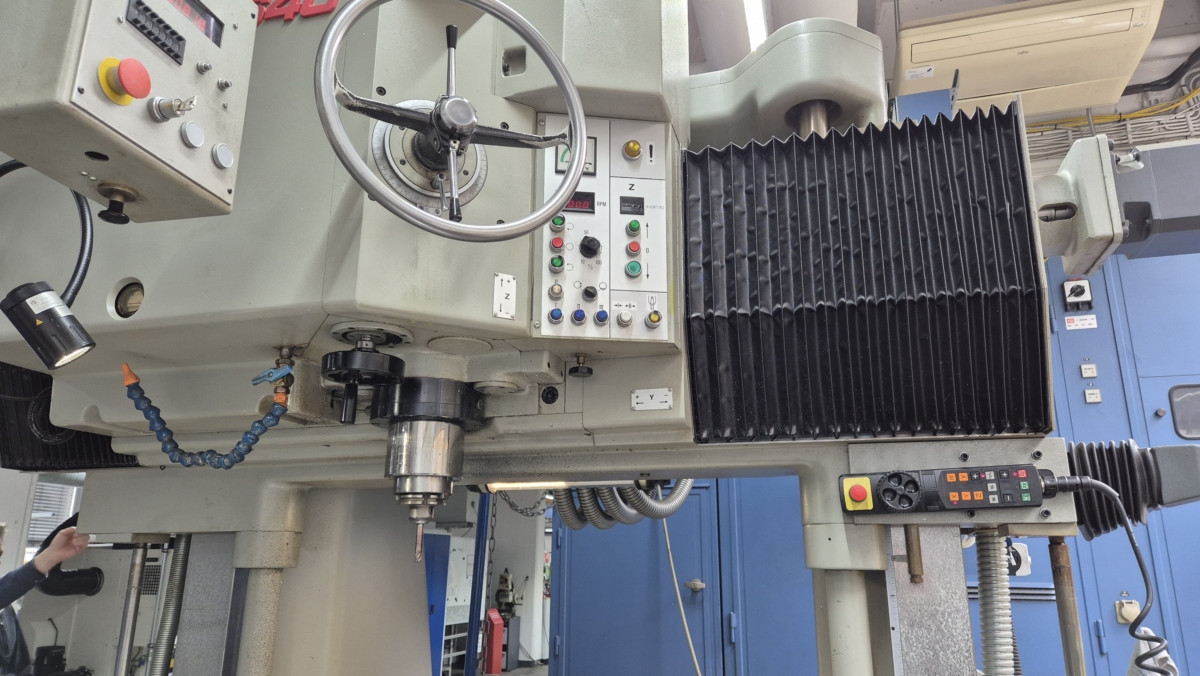

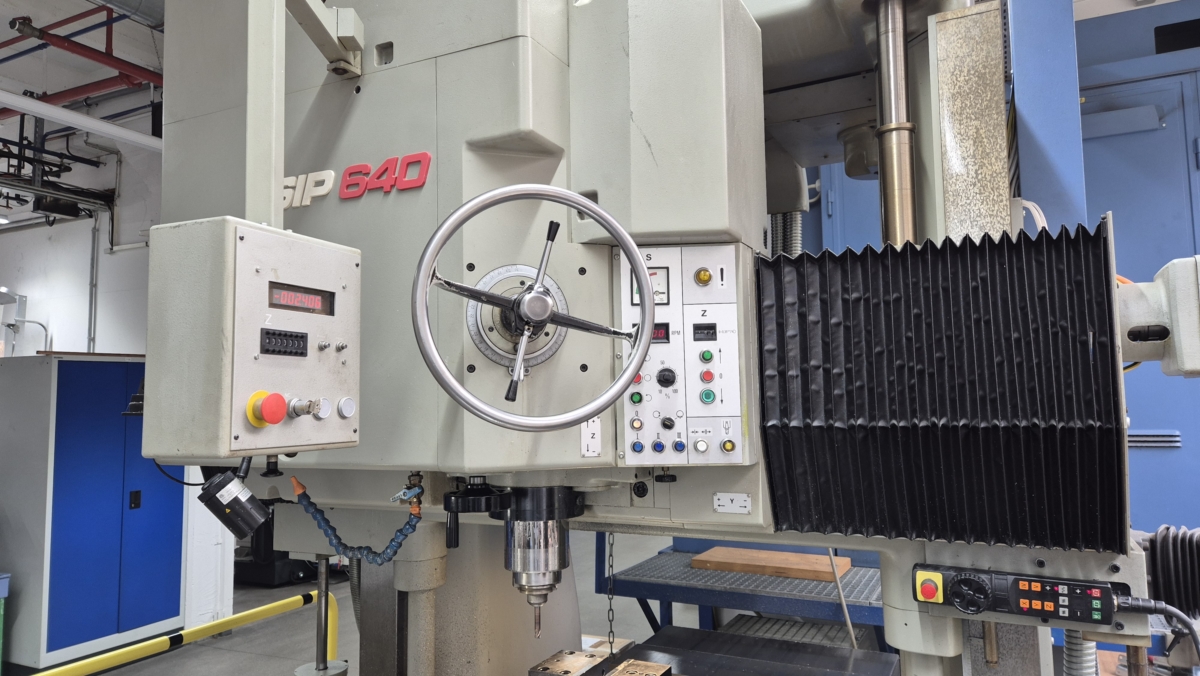

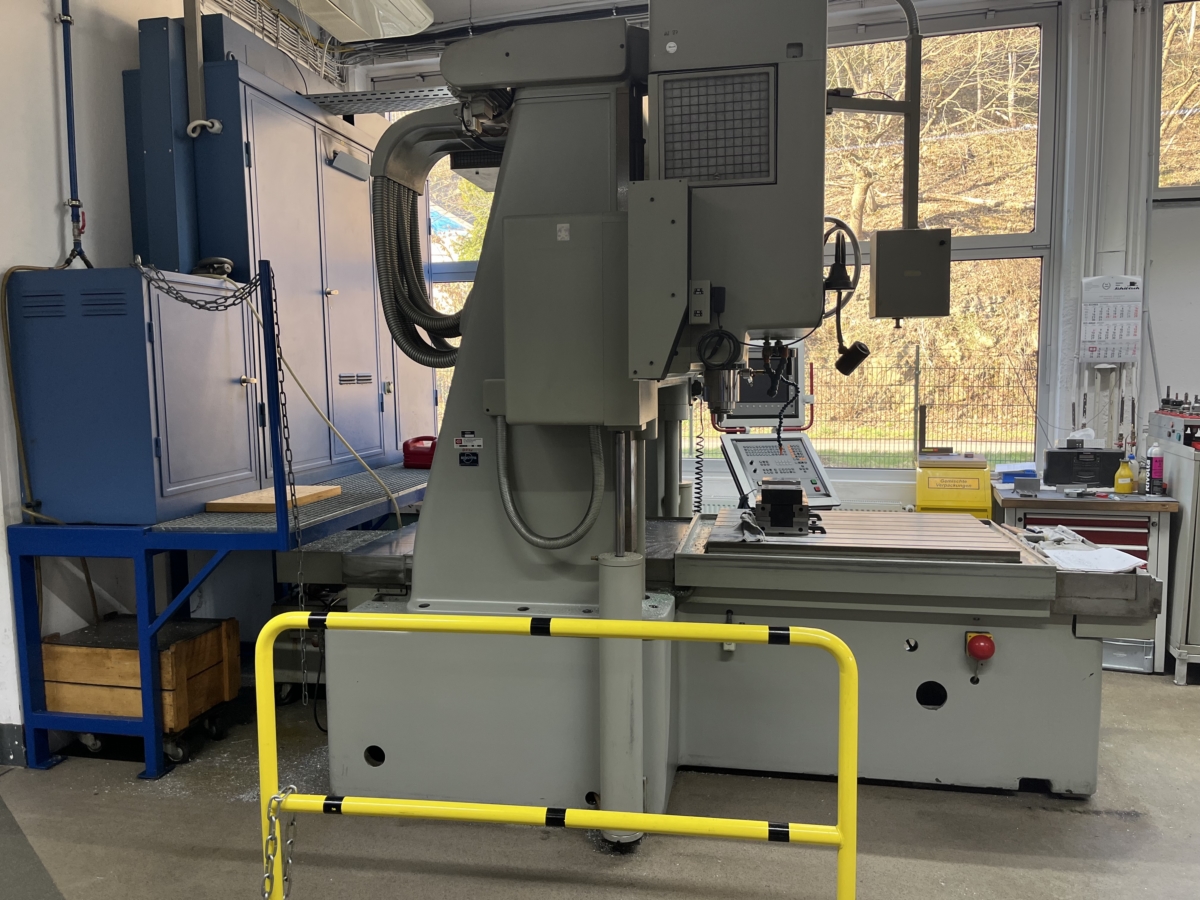

Jig Boring Machine - Vertical
Marca
SIP
Modelo
640
Año de fabricación
1986/2005
Control
CNC
Ubicación
Monheim (Germany)
País de origen
Switzerland
Tiempo de entrega
Immediately
Condición de entrega
Ex warehouse, loaded on truck
Precio

DETALLES TÉCNICOS



spindle diameter
135 mm
x-travel
1000 mm
y-travel
700 mm
z-travel
300 mm
cross rail adjustment - vertical
780 mm
distance between table/spindle
1000 mm
table surface area
1100 x 842 mm
distance between columns
1100 mm
table load
1500 kg
tool taper
SK 45
spindle turning speed range
2400 U/min
spindle drive
5,9 kW
feed range
1 - 6000 mm/min
weight of the machine ca.
10,6 t
dimensions of the machine ca.
m



DESCRIPCIÓN

Retrofit / overhauling in May 2005 (with geometric measurement):
- New Heidenhain iTNC-530 control
- New electronics
- New Siemens servomotors
- Heidenhain glass scales

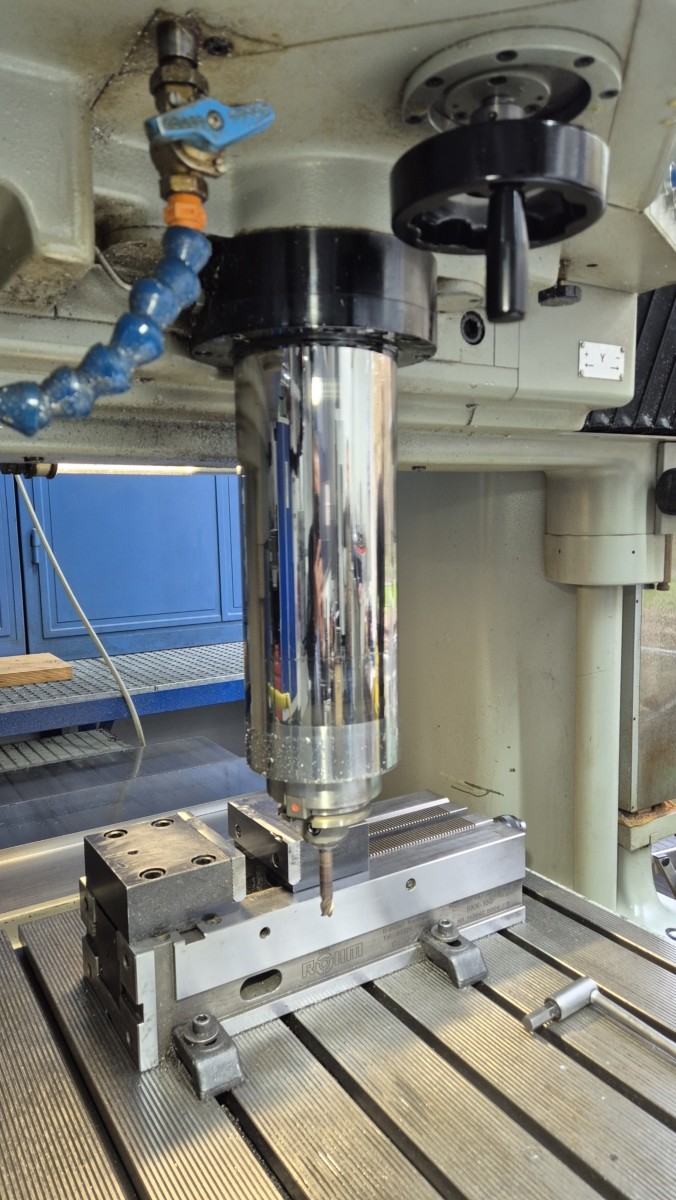

- Revision of drilling spindle unit
(total costs 118,436.00 EUR)

Equipment:
Infrared measuring probe m&h 38.10-MINI

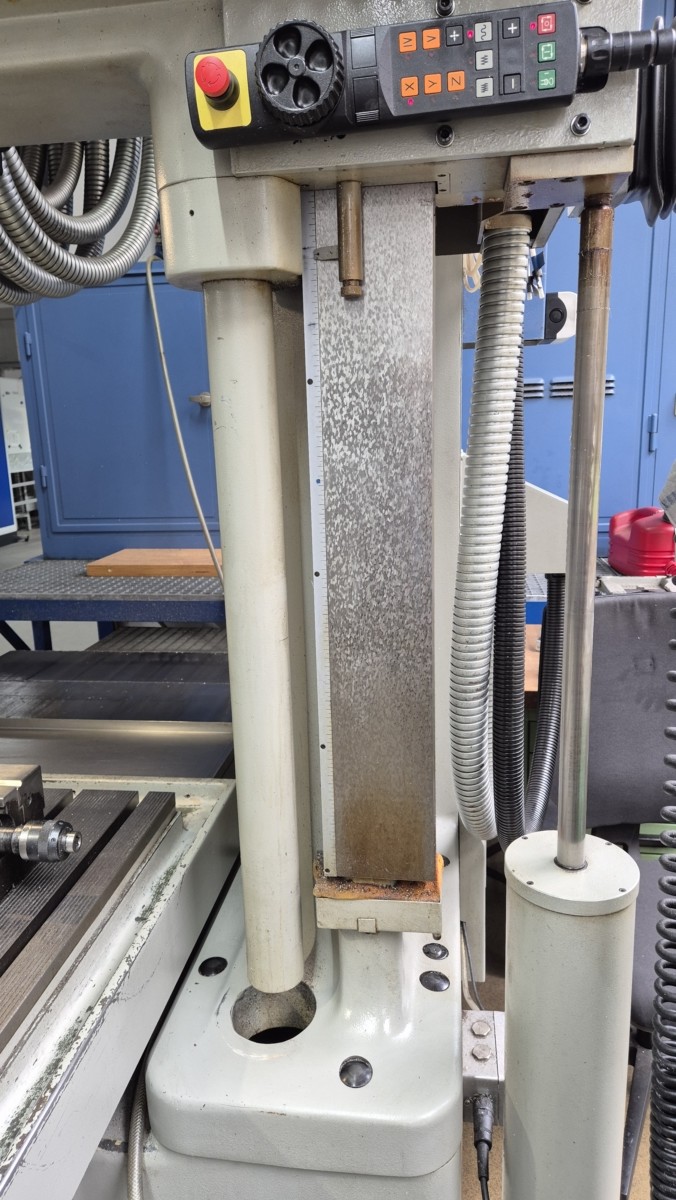

Electron. Handwheel

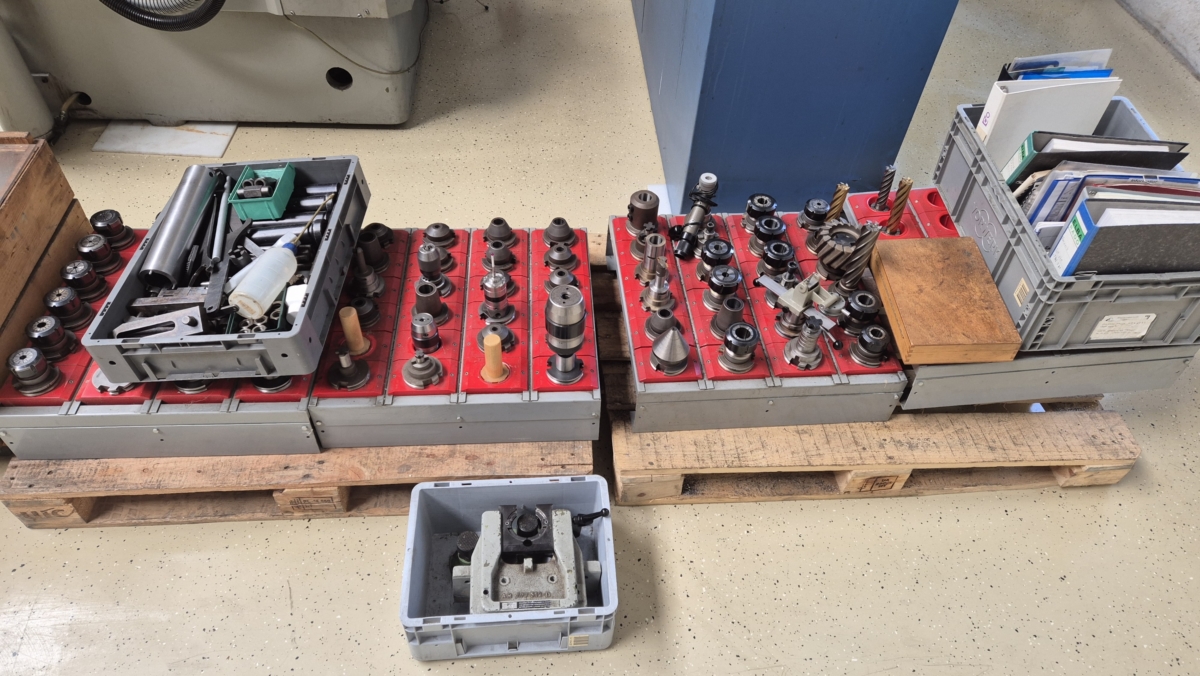

Various tool holders

Transport dimensions:
- Machine (LxWxH) 3500 x 2600 x 2750 mm
- Control cabinet (LxWxH) 2300 x 600 x 2300 mm
- Hydraulic (LxWxH) 800 x 600 x 1000 mm




Cambios y errores en los detalles técnicos y la información reservada.
