HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-2326
Tipo de máquina
Machining Center - Vertical
Marca
AWEA
Modelo
BM 1200
Año de fabricación
2007
Control
CNC
Ubicación
Monheim (Germany)
País de origen
Taiwan
Tiempo de entrega
Immediately
Condición de entrega
Ex warehouse, loaded on truck
Precio

DETALLES TÉCNICOS



x-travel
1200 mm
y-travel
600 mm
z-travel
600 mm
Control
Heidenhain iTNC 530
spindle speed:
6000 1/min.
spindle taper
50 SK
spindle drive
7,5/11 kW

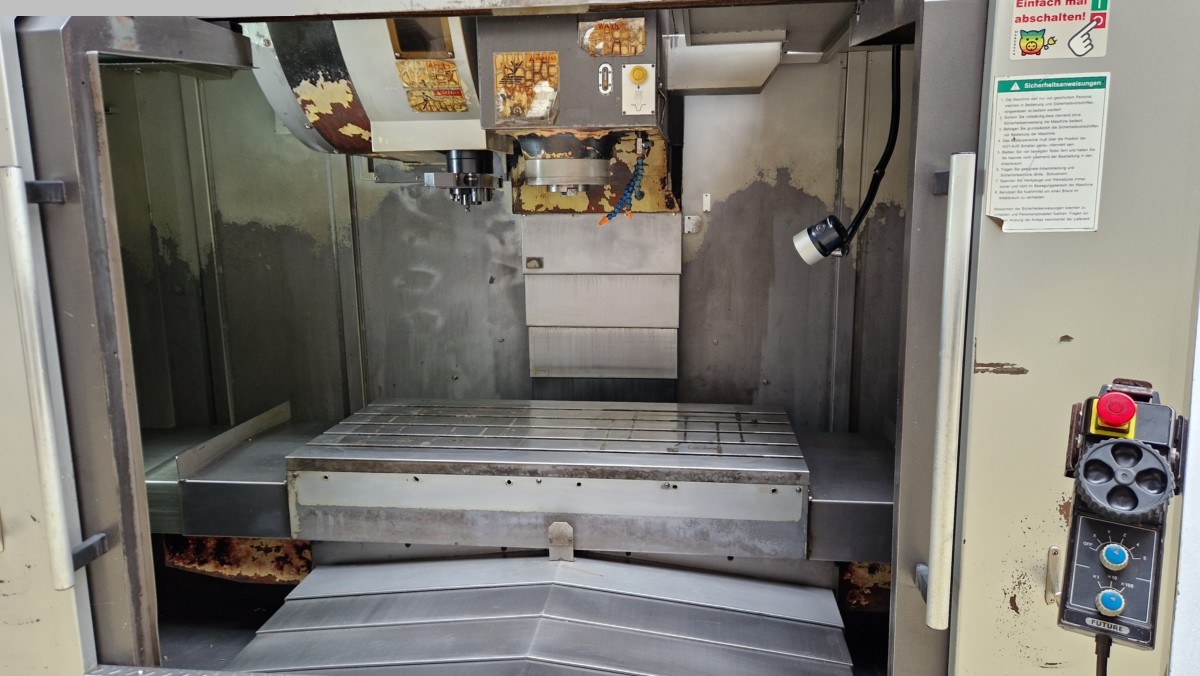

table surface area
1300 x 600 mm
table load
1200 kg
feed speeds
1-10000 mm/min
rapid travel x/y/z
20/20/15 m/min
distance table - lower edge spindle
125-725 mm
total power requirement
25 kVA
weight of the machine ca.
7,5 t
dimensions of machine
3600 x 2300 x 3000 mm


DESCRIPCIÓN

Equipped with:

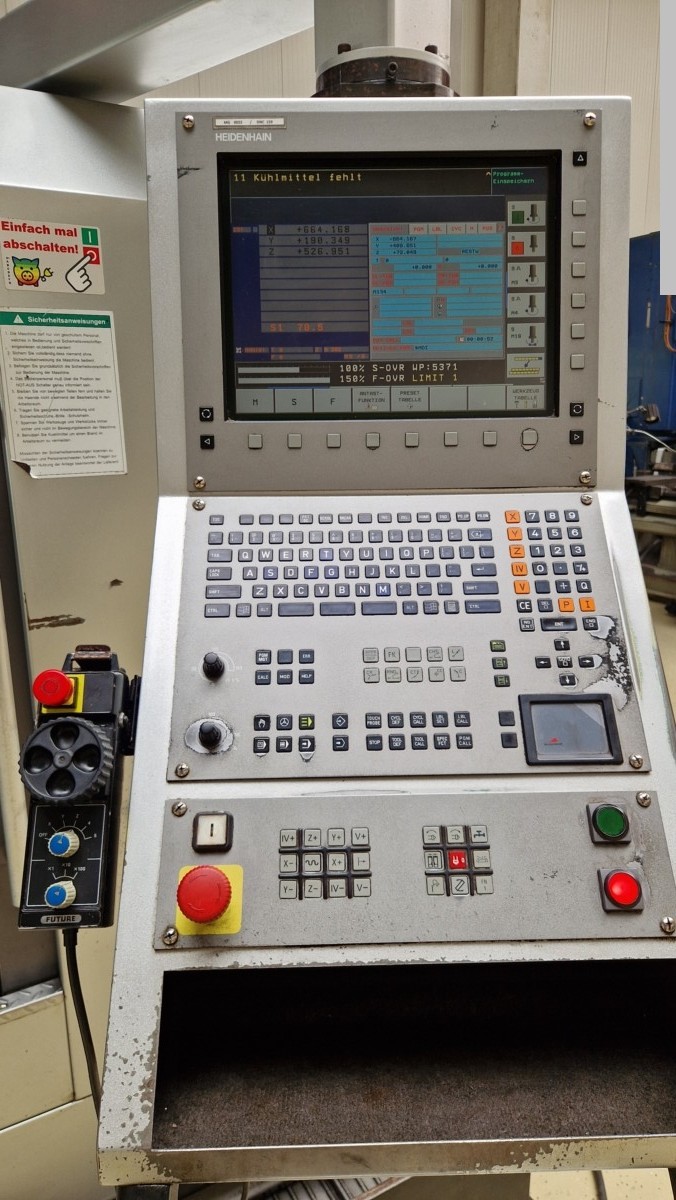

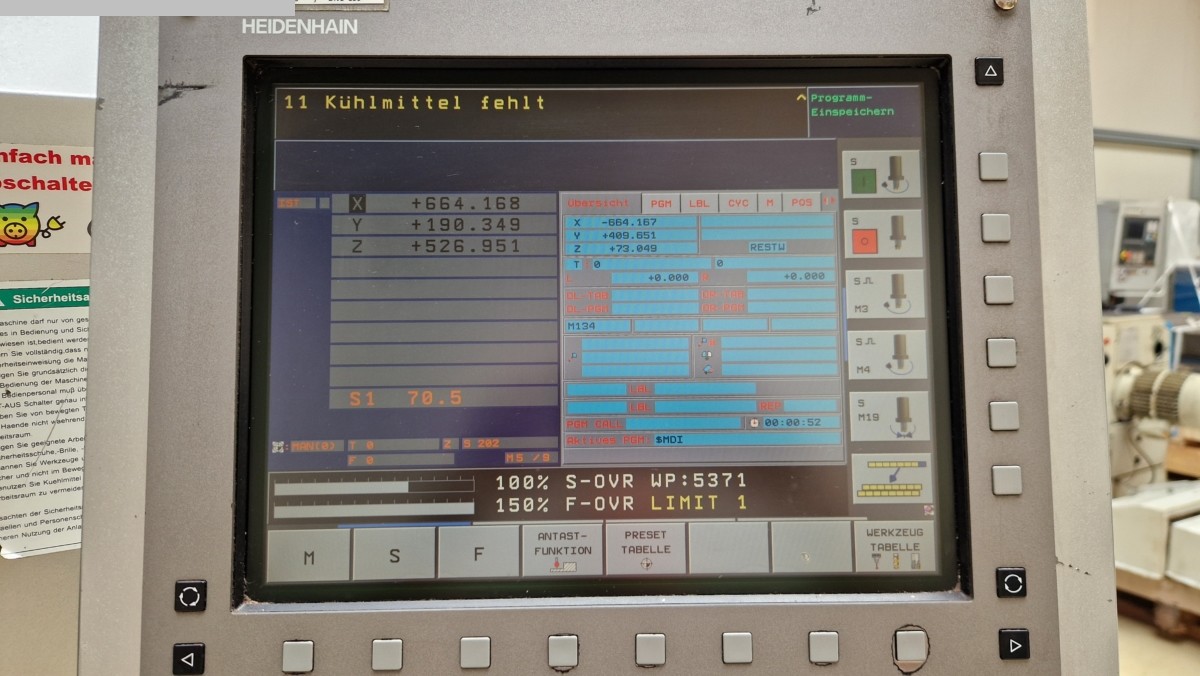

* CNC control Heidenhain iTNC 530
* Electr. portable handwheel

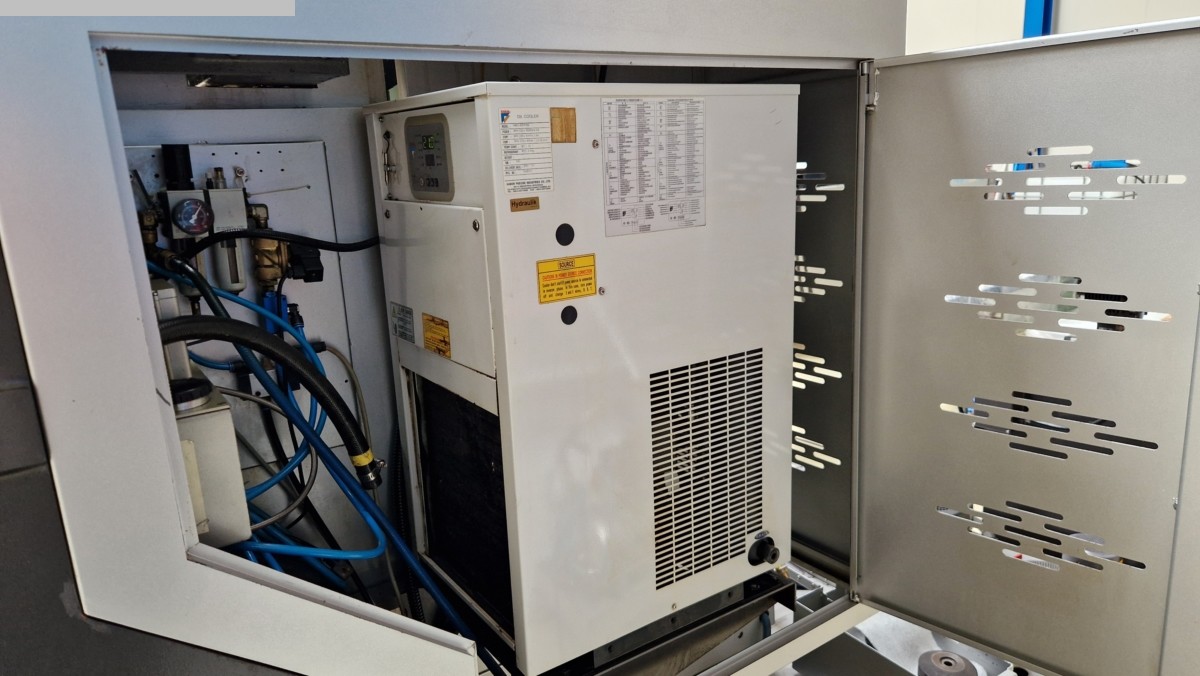

* Spindle oil cooler

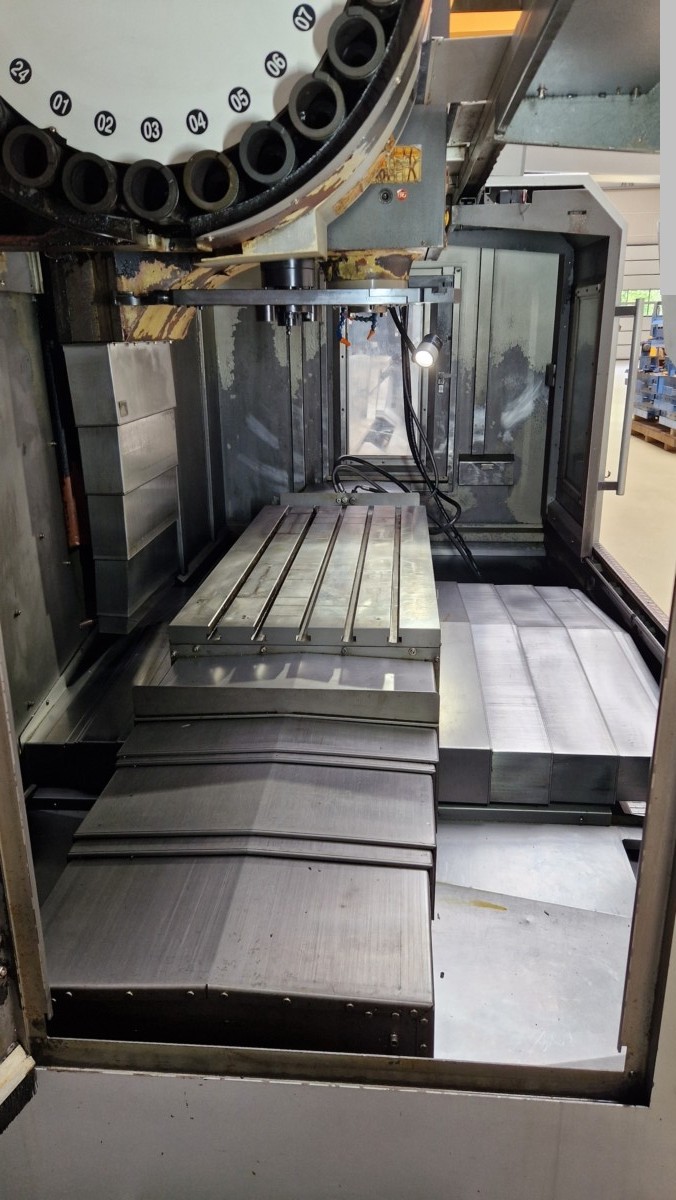

* Tool changer 24-pos., double arm changer
- Max. tool diameter 80/150 mm
- Max. tool length 250 mm
- Max. tool weight 8 kg
* Preparation for hydraulic machine vice
* Preparation for 3-D measuring probes
* Chip conveyor

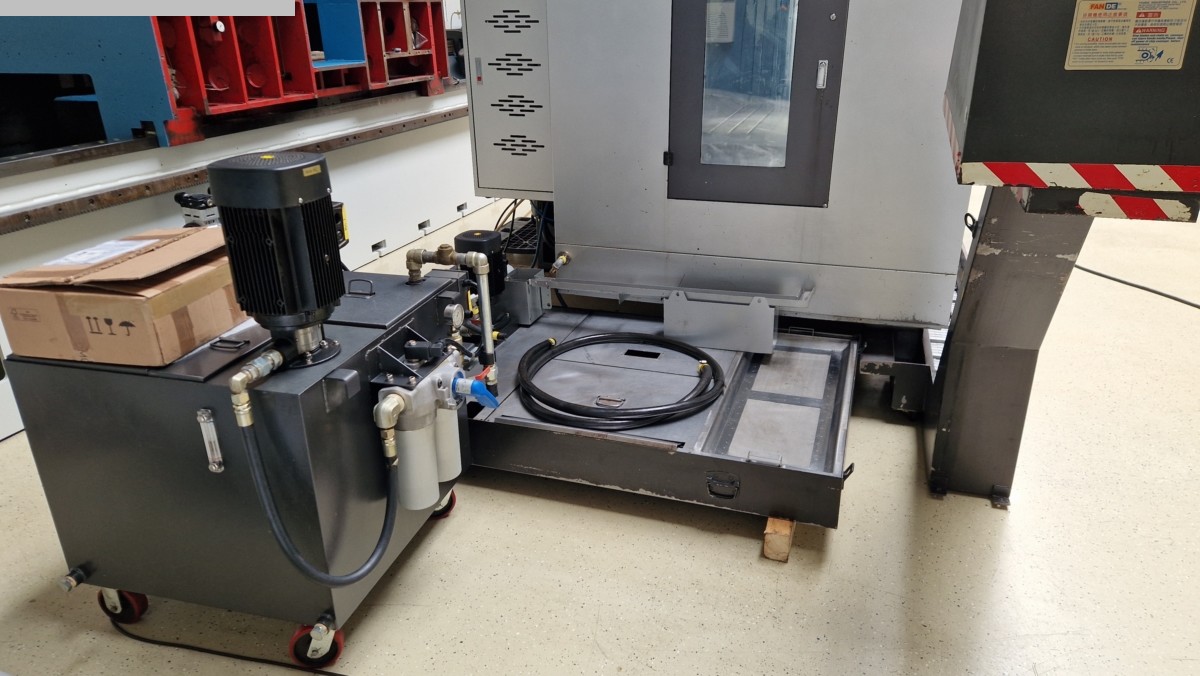

* Coolant system, coolant through spindle
* Machine documentation

Working hours (date 9. April 2024):
- Control on: 60.901 h
- Machine on: 59.590 h
- Program cycle: 22.283 h
- Spindel on: 19.522 h




Cambios y errores en los detalles técnicos y la información reservada.

Documentos y videos

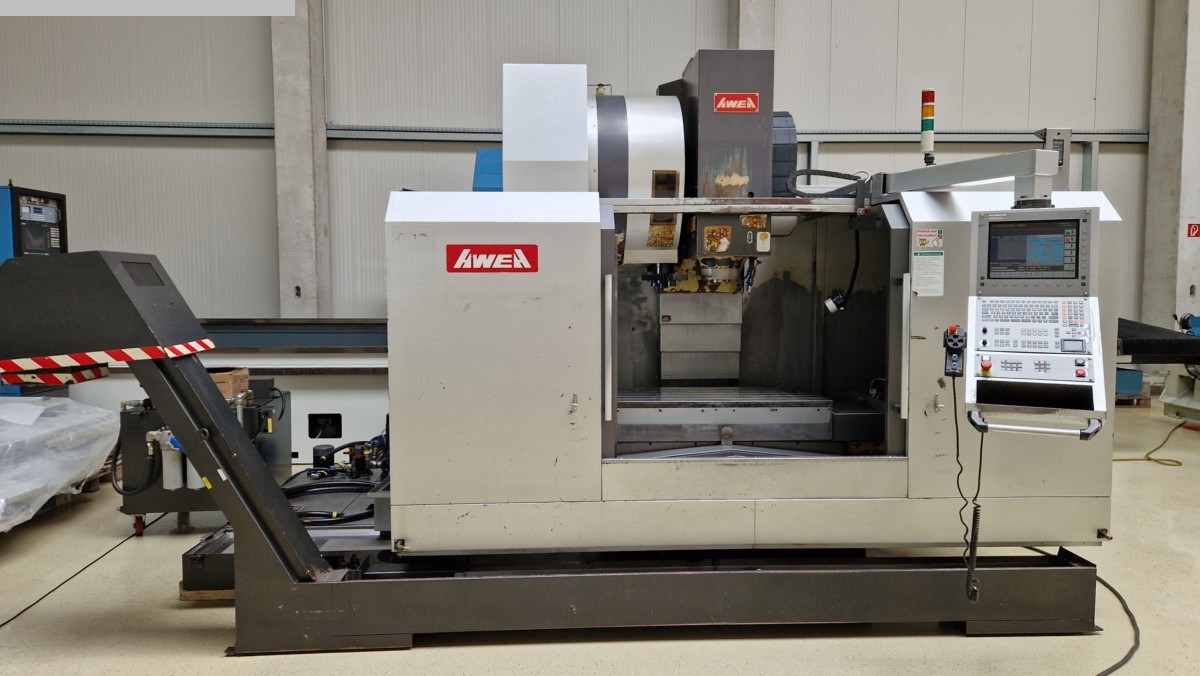

#1022-2326 - Machining Center - Vertical AWEA BM 1200
